3KF13060LB11

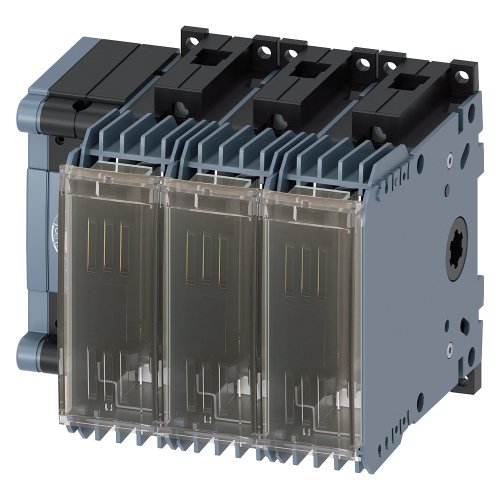

Switch disconnector with fuse 63 A, size 1, 3-pole for LV HRC fuse size 000

Manufacturer's No: 3KF1306-0LB11     Manufacturer: Siemens
Switch disconnector with fuse 63 A, size 1, 3-pole for LV HRC fuse size 000

Availability Back Order

£192.69
  • Switch disconnector with fuse 63A
  • Size 1, 3-pole
  • LV HRC fuse Sz. 000
  • Front operating mechanism on the left
  • Basic unit without handle
  • Box terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF1306-0LB11
Net Weight -
1.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Number of switches -
-
Rated permanent current at AC-23, 400 V -
- Ampere
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as change-over contact -
4
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
63 Ampere
Switching power at 400 V -
30 Kilowatt
Degree of protection (NEMA) -
Other
Cable entry -
Other
Type of control element -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP20
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
2.5 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as safety switch -

Availability Back Order

£192.69
