3KF13060MB11

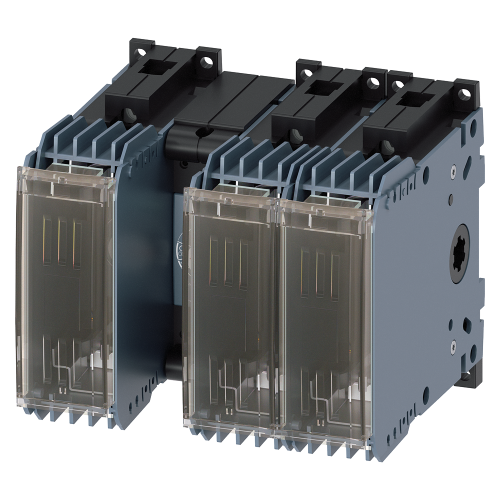

Switch disconnector with fuse 63 A, size 1, 3-pole for LV HRC fuse size 000

Manufacturer's No: 3KF1306-0MB11     Manufacturer: Siemens
Switch disconnector with fuse 63 A, size 1, 3-pole for LV HRC fuse size 000

Availability Back Order

£192.69
  • Switch disconnector with fuse
  • 63A current rating
  • Size 1, 3-pole configuration
  • LV HRC fuse Sz. 000 compatible
  • Front operating mechanism at center
  • Basic unit without handle
  • Box terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF1306-0MB11
Net Weight -
1.49kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Number of auxiliary contacts as normally open contact -
0.00
Number of auxiliary contacts as normally closed contact -
0.00
Number of auxiliary contacts as change-over contact -
4.00
Version as maintenance-/service switch -
Colour control element -
Other
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
63.00 Ampere
Switching power at 400 V -
30.00 Kilowatt
Degree of protection (NEMA) -
Other
Suitable for ground mounting -
Cable entry -
Bottom
Type of control element -
Other
Suitable for busbar mounting -
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP20
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
2.5 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as safety switch -

Availability Back Order

£192.69
