3KF23122LF11

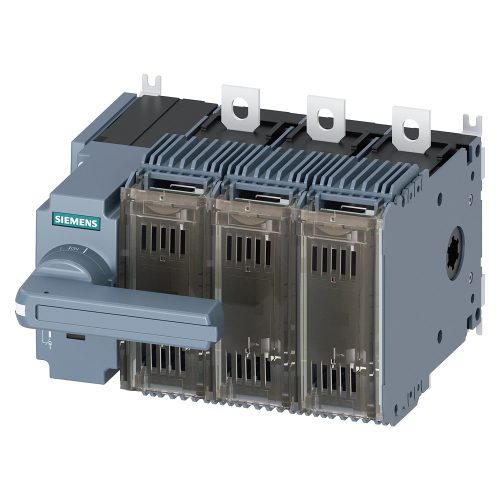

Switch disconnector with fuse 125 A, size 2, 3-pole for LV HRC fuse size 000

Manufacturer's No: 3KF2312-2LF11     Manufacturer: Siemens
Switch disconnector with fuse 125 A, size 2, 3-pole for LV HRC fuse size 000

Availability Back Order

£273.42
  • Switch disconnector with fuse
  • 125A current rating
  • Size 2
  • 3-pole configuration
  • Suitable for LV HRC fuse Sz. 000 and 00
  • Front operating mechanism on the left
  • Complete unit with direct operating mechanism
  • Gray flat terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF2312-2LF11
Net Weight -
3.16kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
6.00
Number of auxiliary contacts as normally closed contact -
6.00
Number of auxiliary contacts as change-over contact -
0.00
Interlockable -
Version as maintenance-/service switch -
Colour control element -
Grey
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
125.00 Ampere
Switching power at 400 V -
55.00 Kilowatt
Degree of protection (NEMA) -
Other
Suitable for ground mounting -
Cable entry -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated operation power at AC-23, 400 V -
55 Kilowatt
Rated permanent current Iu -
125 Ampere
Rated short-time withstand current lcw -
5 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH000, NH00
Type of control element -
Other
Type of electrical connection of main circuit -
Other
Version as main switch -
Version as safety switch -

Availability Back Order

£273.42
