3KF24160MF11

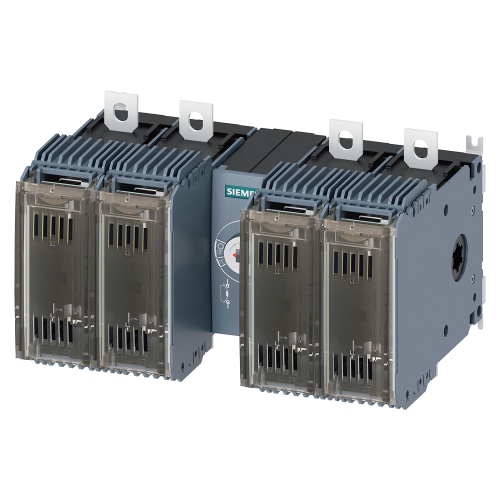

Switch disconnector with fuse 160 A, size 2, 4-pole for LV HRC fuse size 000

Manufacturer's No: 3KF2416-0MF11     Manufacturer: Siemens
Switch disconnector with fuse 160 A, size 2, 4-pole for LV HRC fuse size 000

Availability Back Order

£307.72
  • Switch disconnector with fuse
  • 160A current rating
  • Size 2, 4-pole configuration
  • Compatible with LV HRC fuse Sz. 000 and 00
  • Front operating mechanism located at the center
  • Basic unit without handle
  • Flat terminal design

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF2416-0MF11
Net Weight -
3.49kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
6.00
Number of auxiliary contacts as normally closed contact -
6.00
Number of auxiliary contacts as change-over contact -
0.00
Version as maintenance-/service switch -
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
160.00 Ampere
Switching power at 400 V -
90.00 Kilowatt
Degree of protection (NEMA) -
Other
Suitable for ground mounting -
Cable entry -
Other
Type of control element -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
4
Position control element -
Front
Rated operation power at AC-23, 400 V -
90 Kilowatt
Rated permanent current Iu -
160 Ampere
Rated short-time withstand current lcw -
5 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH000, NH00
Type of electrical connection of main circuit -
Other
Version as emergency stop installation -
Version as main switch -
Version as safety switch -

Availability Back Order

£307.72
