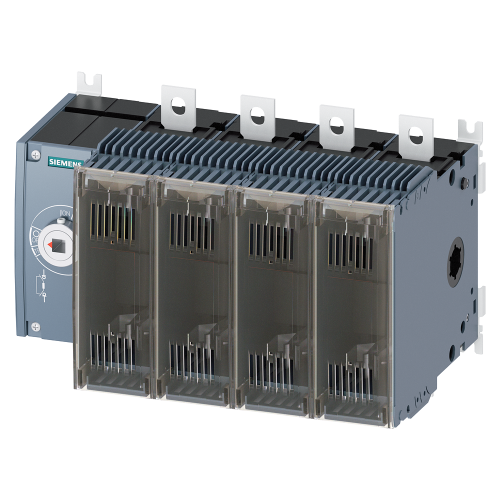

3KF34250LF11

Switch disconnector with fuse 250 A, size 3, 4-pole for LV HRC fuse size 0

Manufacturer's No: 3KF3425-0LF11     Manufacturer: Siemens
Switch disconnector with fuse 250 A, size 3, 4-pole for LV HRC fuse size 0

Availability Back Order

£500.43
  • Switch disconnector with fuse
  • 250A current rating
  • Size 3
  • 4-pole configuration
  • Suitable for LV HRC fuse Sz. 0 and 1
  • Front operating mechanism on the left side
  • Basic unit without handle
  • Flat terminal connections

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF3425-0LF11
Net Weight -
6.63kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
8.00
Number of auxiliary contacts as normally closed contact -
8.00
Number of auxiliary contacts as change-over contact -
0.00
Version as maintenance-/service switch -
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
250.00 Ampere
Switching power at 400 V -
132.00 Kilowatt
Degree of protection (NEMA) -
Other
Suitable for ground mounting -
Cable entry -
Other
Type of control element -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
4
Position control element -
Front
Rated operation power at AC-23, 400 V -
132 Kilowatt
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
8 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH0, NH1
Type of electrical connection of main circuit -
Other
Version as emergency stop installation -
Version as main switch -
Version as safety switch -

Availability Back Order

£500.43
