3KF44400LF11

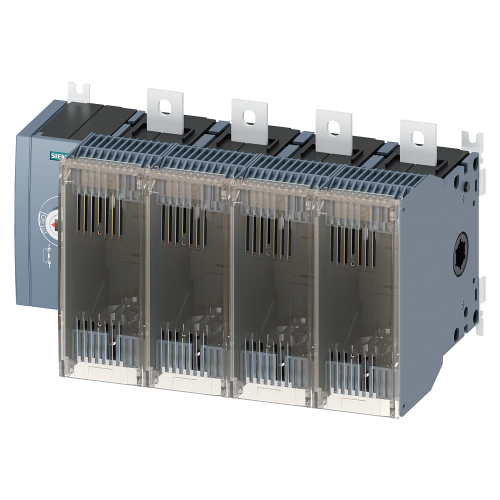

Switch disconnector with fuse 400 A, size 4, 4-pole for LV HRC fuse size 1

Manufacturer's No: 3KF4440-0LF11     Manufacturer: Siemens
Switch disconnector with fuse 400 A, size 4, 4-pole for LV HRC fuse size 1

Availability Back Order

£809.14
  • Switch disconnector with fuse
  • 400A current rating
  • Size 4, 4-pole configuration
  • LV HRC fuse Sz. 1 and 2 compatible
  • Front operating mechanism on the left side
  • Basic unit without handle
  • Flat terminal connections

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KF4440-0LF11
Net Weight -
9.40kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Number of auxiliary contacts as normally open contact -
8.00
Number of auxiliary contacts as normally closed contact -
8.00
Number of auxiliary contacts as change-over contact -
0.00
Version as maintenance-/service switch -
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V -
400.00 Ampere
Switching power at 400 V -
220.00 Kilowatt
Degree of protection (NEMA) -
Other
Suitable for ground mounting -
Cable entry -
Other
Type of control element -
Other
Conditioned rated short-circuit current Iq -
100 kiloampere
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
4
Position control element -
Front
Rated operation power at AC-23, 400 V -
220 Kilowatt
Rated permanent current Iu -
400 Ampere
Rated short-time withstand current lcw -
12 kiloampere
Suitable for floor mounting -
Suitable for fuses -
NH1, NH2
Type of electrical connection of main circuit -
Other
Version as emergency stop installation -
Version as main switch -
Version as safety switch -
