3802625

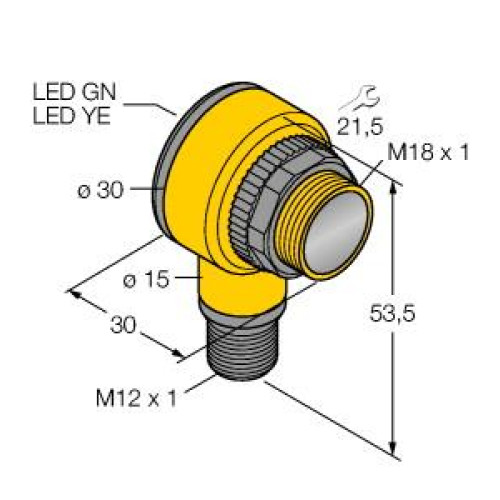

T18-2 Series: Polarized Retroreflective, Range: 6 m, Input: 10-30 V dc, Outputs: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: T18-2VNLP-Q8     Manufacturer: Turck Banner
T18-2 Series: Polarized Retroreflective, Range: 6 m, Input: 10-30 V dc, Outputs: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£97.99
  • Photoelectric Sensor with Polarizing Filter
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5500 mm
  • Connector: M12 x 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • NPN Switching Output
  • Light and Dark Operation


Product

Manufacturer Material ID -
T18-2VNLP-Q8
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5500 Millimetre
Rated switching distance -
5500 Millimetre
Reaction time -
1.5 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
624 Nanometre
Width sensor -
30 Millimetre
Turck Banner

Availability On Request

£97.99
