3802631

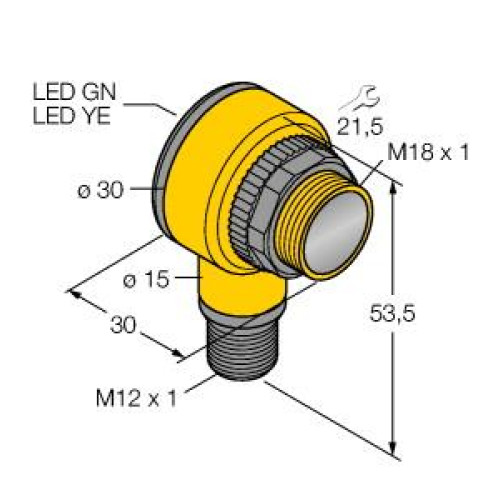

T18-2 Series: Polarized Retroreflective with pot, Range: Variable to 6 m, Input: 10-30 V dc, Outputs: Complementary NPN, 4-pin M12

Manufacturer's No: T18-2VNLPC-Q8     Manufacturer: Turck Banner
T18-2 Series: Polarized Retroreflective with pot, Range: Variable to 6 m, Input: 10-30 V dc, Outputs: Complementary NPN, 4-pin M12 Integral QD

Availability Back Order

£111.46
  • Series: T18-2
  • Type: Polarized Retroreflective sensor
  • Range: Up to 6 meters
  • Input: 10-30 V DC
  • Output: Complementary NPN
  • Connector: 4-pin M12 Integral QD


Product

Manufacturer Material ID -
T18-2VNLPC-Q8
Net Weight -

Additional Product Information

UNSPSC -
43211902

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5500 Millimetre
Rated switching distance -
5500 Millimetre
Reaction time -
1.5 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
624 Nanometre
Width sensor -
30 Millimetre
Turck Banner

Availability Back Order

£111.46
