285-1185

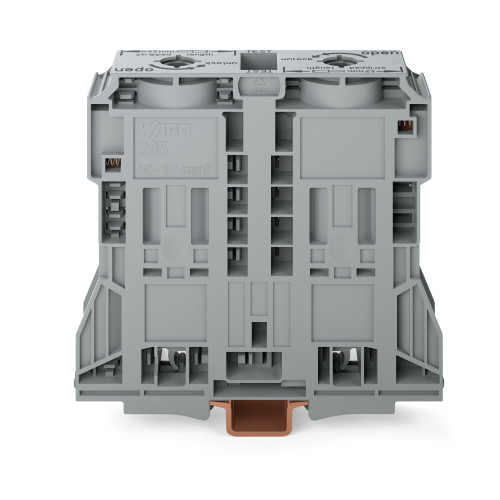

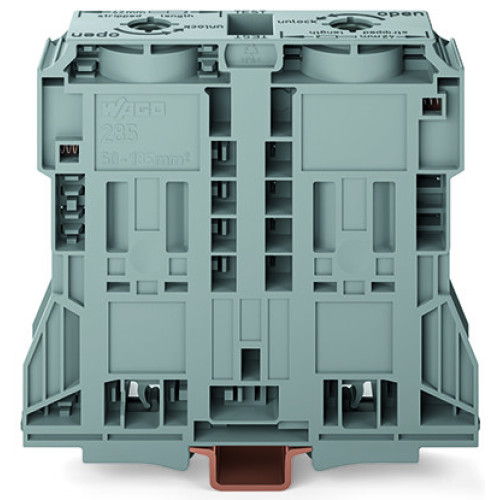

2-conductor through terminal block, 185 mm², lateral marker slots, gray

Manufacturer's No: 285-1185     Manufacturer: WAGO
2-conductor through terminal block, 185 mm², lateral marker slots, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£40.12
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with POWER CAGE CLAMP
  • Conductor size: 185 mm²
  • Lateral marker slots included
  • Color: Gray

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
Back Order

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1171
Price £16.38
Back Order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
Back Order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
Back Order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
Back Order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
Back Order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
Back Order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
Back Order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
Back Order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
Back Order

Finger guard, touchproof cover protects unused conductor entries and jumper slots, for 185 mm² high-current terminal blocks, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1178
Price £0.68
Back Order

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1176
Price £0.31
Back Order


Product

Manufacturer Material ID -
285-1185
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
5
UNSPSC -
39121410

Technical Specification

Length -
130 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
32 Millimetre
Height at lowest possible mounting height -
116 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
50 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
50 Square millimetre
Connectable conductor cross section multi-wired -
50 Square millimetre
Connectable conductor cross section solid-core -
50 Square millimetre
Depth -
116 Millimetre
Height -
130 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
353 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
32 Millimetre
