285-137

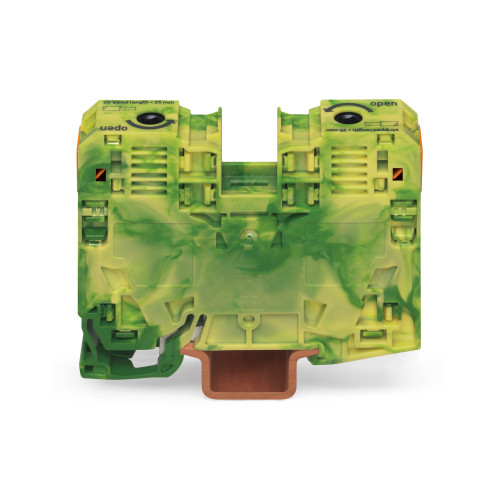

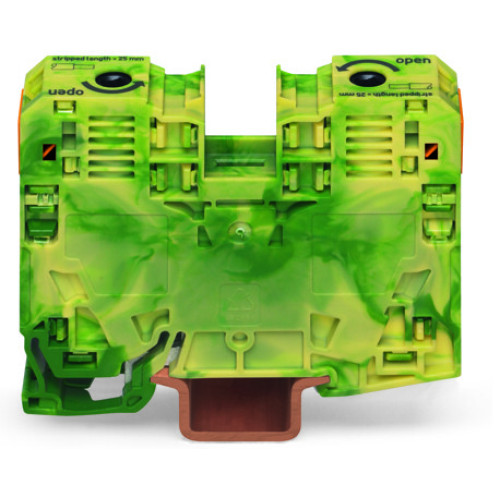

2-conductor ground terminal block, 35 mm², lateral marker slots, green-yellow

Manufacturer's No: 285-137     Manufacturer: WAGO
2-conductor ground terminal block, 35 mm², lateral marker slots, green-yellow

Availability In Stock

£12.05
  • 2-conductor ground terminal block

  • Suitable for DIN 35 x 15 rail

  • Maximum capacity: 35.00 mm²

  • Features lateral marker slots

  • Equipped with POWER CAGE CLAMP

  • Color: green-yellow

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.06
Available to order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.22
Available to order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.22
Available to order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.22
Available to order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.22
Available to order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.22
Available to order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Available to order

Ferrule, Sleeve for 35 mm² / AWG 2, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-414
Price £0.41
Available to order

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-442
Price £0.25
Available to order

Test plug adapter, 11.6 mm wide, for 4 mm Ø test plugs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 283-404
Price £2.04
Available to order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.22
Available to order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.22
Available to order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.22
Available to order

Ferrule, Sleeve for 25 mm² / AWG 4, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-413
Price POA
Available to order

WMB marking card, as card, for terminal block width 5 - 17.5 mm, brown

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-5501/000-014
Price POA
Available to order


Product

Manufacturer Material ID -
285-137
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Export Control Regulations -
85366990
Minimum Order Quantity -
None
RoHs Compliance -
YES
UNSPSC -
39121410

Technical Specification

-
Wago
Length -
86 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
63 Millimetre
Connection position -
Sideways
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
63 Millimetre
Height -
86 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
16 Millimetre

Availability In Stock

£12.05
