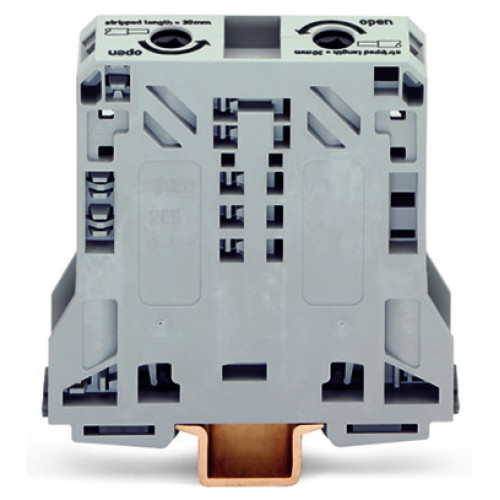

285-150

2-conductor through terminal block; 50 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 50,00 mm²

Manufacturer's No: 285-150     Manufacturer: WAGO
2-conductor through terminal block; 50 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 50,00 mm²; gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£14.73
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with POWER CAGE CLAMP
  • Accommodates wires up to 50 mm²
  • Lateral marker slots for easy identification
  • Color: Gray

Accessories

Protective warning marker; with high-voltage symbol, black; yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-440
Price £0.43
In Stock

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Marker Carrier, For Power Cage Clamp 35/50/95 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-442
Price £0.25
Back Order
Price POA
Back Order

Ferrule; Sleeve for 50 mm² / AWG 1; uninsulated; electro-tin plated; electrolytic copper; acc. to DIN 46228, Part 1/08.92

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-425
Price POA
Back Order

Fixing element; for 50 mm² high-current terminal blocks; orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-448
Price £1.35
Back Order

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-449
Price £0.38
Back Order


Product

Manufacturer Material ID -
285-150
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
None
RoHs Compliance -
YES
UNSPSC -
39121410

Technical Specification

-
Wago
Length -
94 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
87 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
10 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
10 Square millimetre
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
10 Square millimetre
Depth -
87 Millimetre
Height -
94 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
150 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
20 Millimetre

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£14.73
