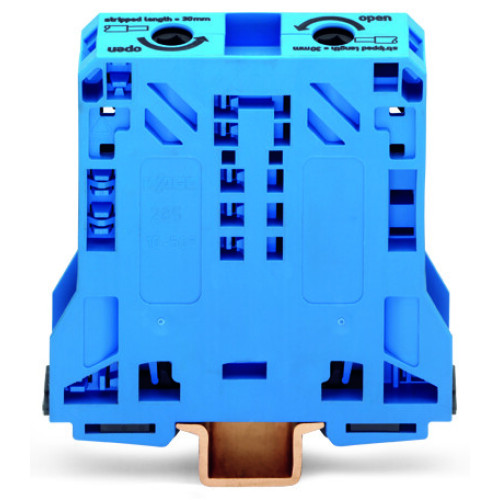

285-154

2-conductor through terminal block, 50 mm², lateral marker slots, blue

Manufacturer's No: 285-154     Manufacturer: WAGO
2-conductor through terminal block, 50 mm², lateral marker slots, blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£16.04
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with POWER CAGE CLAMP
  • 50.00 mm² capacity
  • Lateral marker slots
  • Color: Blue

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
Back Order

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
Back Order

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
Back Order

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
Back Order

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
Back Order

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
Back Order

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
Back Order

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-442
Price £0.25
Back Order

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
Back Order

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
Back Order

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
Back Order

Ferrule, Sleeve for 35 mm² / AWG 2, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-424
Price POA
Back Order

Ferrule, Sleeve for 50 mm² / AWG 1, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-425
Price POA
Back Order

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-449
Price £0.38
Back Order


Product

Manufacturer Material ID -
285-154
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
5
RoHs Compliance -
YES
UNSPSC -
39121410

Technical Specification

-
Wago
Length -
94 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
87 Millimetre
Connection position -
Sideways
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
10 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
10 Square millimetre
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
10 Square millimetre
Depth -
87 Millimetre
Height -
94 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
150 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
20 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£16.04
