221-415

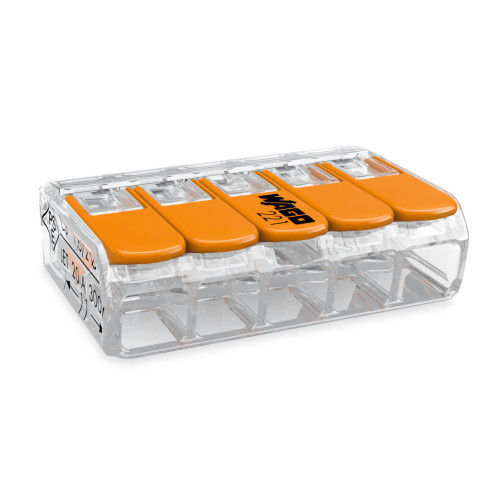

COMPACT Splicing Connectors 5-conductor connector with operating levers Max.ambient operating temp. 85 °C

Manufacturer's No: 221-415     Manufacturer: WAGO
COMPACT Splicing Connectors 5-conductor connector with operating levers Max.ambient operating temp. 85 °C

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£0.65
  • Splicing connector with levers
  • For all conductor types
  • Maximum capacity: 4 mm²
  • 5-conductor capacity
  • Transparent housing
  • Surrounding air temperature: max 85°C (T85)
  • Connector size: 4.00 mm²

Accessories

Jumper, for conductor entry, 2-way, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 221-941
Price £1.16
Available to order

Jumper, for conductor entry, 2-way, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 221-941/000-006
Price POA
Available to order

Jumper, for conductor entry, 2-way, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 221-942
Price £1.05
Available to order

Jumper, for conductor entry, 2-way, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 221-942/000-006
Price £1.05
Available to order


Product

Manufacturer Material ID -
221-415
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
None
RoHs Compliance -
221-415
UNSPSC -
39121410

Technical Specification

Cable diameter -
- Millimetre
AWG-range -
12
Colour -
Colourless
Conductor cross section flexible (fine-strand) with cable end sleeve -
0.14 Square millimetre
Conductor cross section solid (solid, stranded) -
0.2 Square millimetre
Nominal cross section -
0.2 Square millimetre
Nominal current -
32 Ampere
Nominal voltage -
450 Volt
Number of clamp positions -
5
Suitable for flexible core -
Suitable for multi-wire core -
Suitable for solid core -
Transparent -
With operation lever -

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

£0.65
