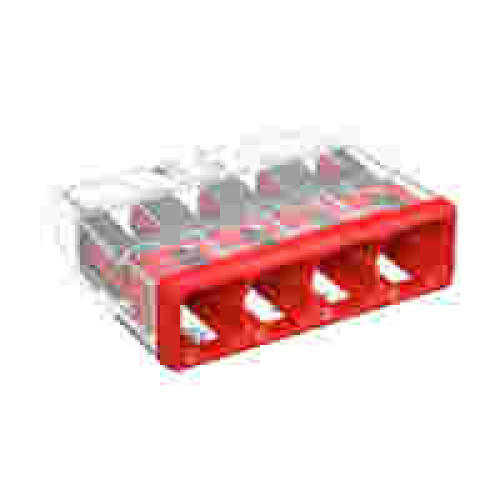

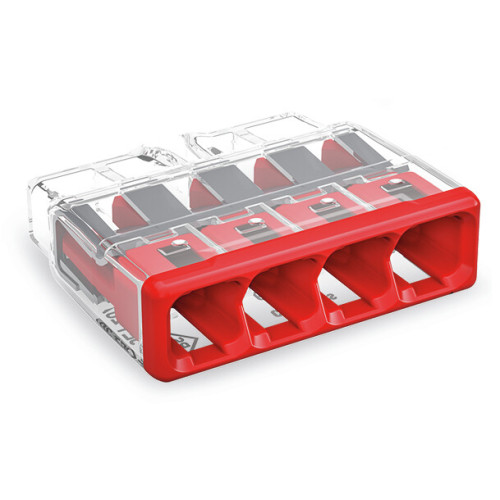

2773-404

4 WAY PUSHWIRE CONNECTOR

Manufacturer's No: 2773-404     Manufacturer: WAGO
4 WAY PUSHWIRE CONNECTOR

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.23
  • PUSH WIRE® splicing connector
  • For solid and stranded conductors
  • Maximum capacity: 4 mm²
  • 4-conductor design
  • Transparent housing with red cover
  • Surrounding air temperature: max 85°C (T85)
  • Connector size: 4.00 mm²

Accessories

ADAPTOR FOR 2773 SERIES

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2773-500
Price £0.74
Back Order


Product

Manufacturer Material ID -
2773-404
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
RoHs Compliance -
2773-404
UNSPSC -
39121410

Technical Specification

Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
AWG-range -
12
Cable diameter -
1.6 Millimetre
Colour -
Colourless
Conductor cross section solid (solid, stranded) -
0.75 Square millimetre
Nominal cross section -
0.75 Square millimetre
Nominal current -
32 Ampere
Nominal voltage -
450 Volt
Number of clamp positions -
4
Suitable for multi-wire core -
Suitable for solid core -
Transparent -

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.23
