2070-463/998-406

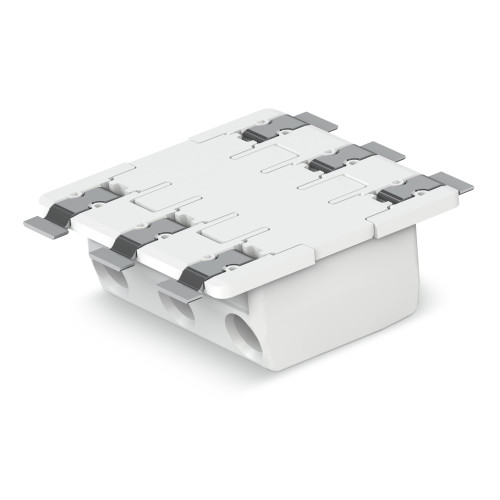

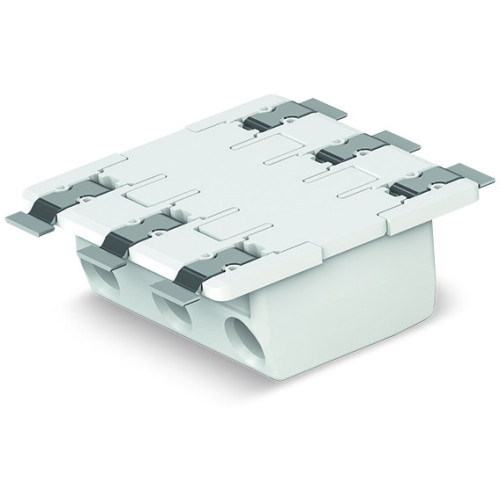

Through-Board SMD PCB Terminal Block, 0.75 mm², Pin spacing 6.5 mm, white

Manufacturer's No: 2070-463/998-406     Manufacturer: WAGO
Through-Board SMD PCB Terminal Block, 0.75 mm², Pin spacing 6.5 mm, white

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£0.77
  • Through-Board SMD PCB Terminal Block
  • Pin spacing: 6.5 mm
  • Conductor size: 0.75 mm²
  • 3-pole configuration
  • Push-in CAGE CLAMP® technology
  • Tape-and-reel packaging
  • Color: white

Accessories

Operating tool, made of insulating material, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2070-400
Price £19.37
Back Order


Product

Manufacturer Material ID -
2070-463/998-406
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
22.2 Millimetre
Operation temperature -
-60 Degrees celsius
Width/grid dimension -
6.5 Millimetre
Height at lowest possible mounting height -
7.45 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Depth -
22.2 Millimetre
Height -
7.45 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
9 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
6.5 Millimetre
