770-115

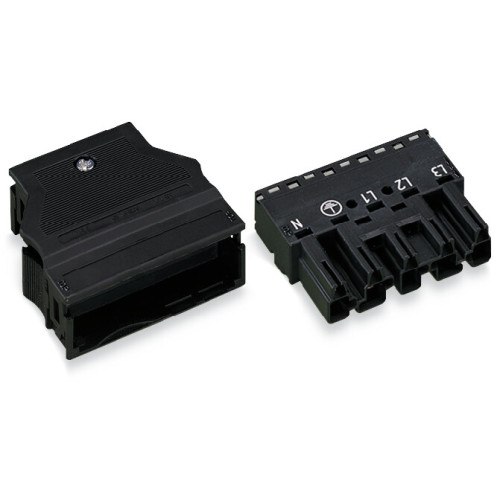

Plug, with strain relief housing, 5-pole, black

Manufacturer's No: 770-115     Manufacturer: WAGO
Plug, with strain relief housing, 5-pole, black

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.50

£4.38
  • Plug with strain relief housing
  • 5-pole
  • Cod. A
  • Wire size: 4.00 mm²
  • Color: Black


Product

Manufacturer Material ID -
770-115
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Cable diameter -
9 Millimetre
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.18778 Kilowatthour
Height -
17 Millimetre
Housing material -
Polyamide (PA)
Length -
76 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
5
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
54.6 Millimetre
With strain relief -
