770-135

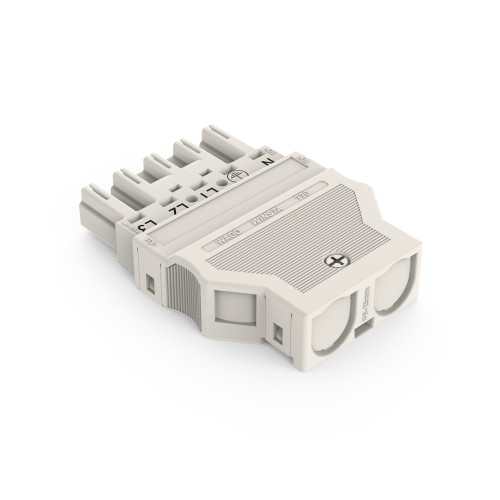

Plug, with strain relief housing, 5-pole, Cod. A, 4, 00 mm, white

Manufacturer's No: 770-135     Manufacturer: WAGO
Plug, with strain relief housing, 5-pole, Cod. A, 4, 00 mm, white

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£4.38
  • Plug with strain relief housing
  • 5-pole
  • Cod. A
  • Wire size: 4.00 mm²
  • Color: White

Accessories

Locking lever, for flying leads, for manual operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-101
Price £0.16
Back Order

Locking lever, for flying leads, for manual operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-121
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-111
Price £0.16
Back Order

Locking lever, for flying leads, for tool operation, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-131
Price £0.16
Back Order

Marker Card, For Manual Marking White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-450
Price £0.66
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order

Coding pin, for plugs, Plastic, gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-401
Price £0.08
Back Order


Product

Manufacturer Material ID -
770-135
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
White
Cable diameter -
9 Millimetre
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.11667 Kilowatthour
Height -
17 Millimetre
Housing material -
Polyamide (PA)
Length -
76 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
5
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
54.6 Millimetre
With strain relief -

Availability Back Order
