770-620

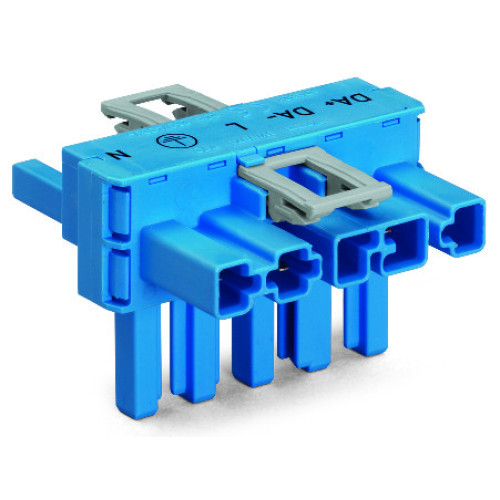

T-Distribution Connector, 1 X Plug / 2 X Socket 5-Pole Blue

Manufacturer's No: 770-620     Manufacturer: WAGO
T-Distribution Connector, 1 X Plug / 2 X Socket 5-Pole Blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£6.72
  • T-distribution connector
  • 5-pole
  • Cod. I
  • 1 input, 2 outputs
  • 3 locking levers
  • For flying leads
  • Color: blue

Accessories

Lockout cap, 12-pole, separable, for sockets, Plastic, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-201
Price £0.44
Back Order

Lockout cap, 12-pole, separable, for sockets, Plastic, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-221
Price £0.44
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order


Product

Manufacturer Material ID -
770-620
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Blue
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.12944 Kilowatthour
Halogen free -
Height -
35.9 Millimetre
Housing material -
Polyamide (PA)
Length -
48.9 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
No
Number of inputs -
5
Number of outputs -
10
Number of poles -
5
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of distributor -
T-distributor
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
54 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£6.72
