890-103

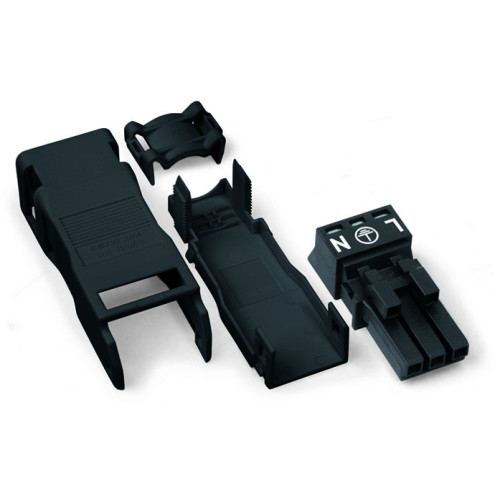

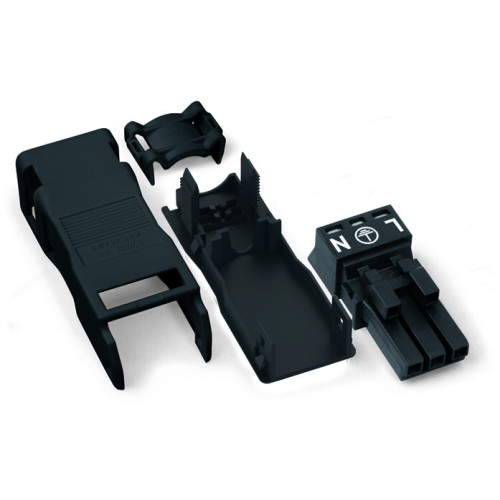

Socket, with strain relief housing, 3-pole, Cod. A, 1, 50 mm, black

Manufacturer's No: 890-103     Manufacturer: WAGO
Socket, with strain relief housing, 3-pole, Cod. A, 1, 50 mm, black

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£3.39
  • Socket with strain relief housing
  • 3-pole configuration
  • Cod. A coding
  • Wire size: 1.50 mm²
  • Color: Black

Accessories

Mounting carrier, 2- to 5-pole, for flying leads, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 890-311
Price £0.78
Back Order

Mounting Carrier, For “Flying Leads” 2- To 5-Pole Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 890-310
Price £0.78
Back Order

Locking Lever, For Tool Operation For “Flying Leads” Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 890-111
Price £0.15
Back Order

Locking Lever, For Tool Operation For “Flying Leads” White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 890-131
Price £0.15
Back Order


Product

Manufacturer Material ID -
890-103
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
RoHs Compliance -
YES
UNSPSC -
39121402

Technical Specification

-
Wago
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N, PE
Colour coding/contact insert -
Black
Cable diameter -
4.5 Millimetre
Connection cross section (fine-strand) -
0.25 Square millimetre
Connection cross section (solid-core) -
0.25 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.05222 Kilowatthour
Halogen free -
Height -
14 Millimetre
Housing material -
Polyamide (PA)
Length -
63.6 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
1
Number of poles -
3
Pollution degree -
3
Rated current -
16 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
17.9 Millimetre
With strain relief -
