2CPX010012R9999

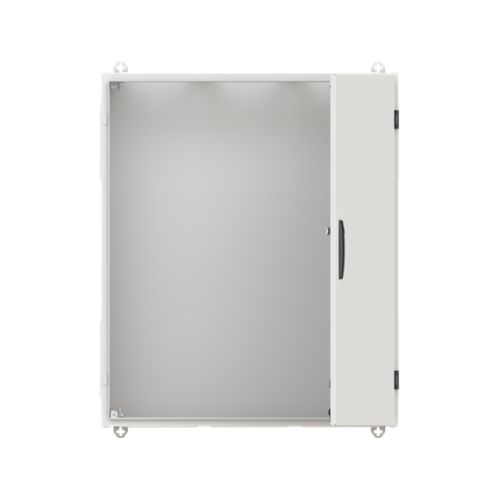

TG306G Wall-mounting cabinet, Rows: 6, 950 mm x 800 mm x 225 mm, Grounded (Class I), IP55

Manufacturer's No: TG306G     Manufacturer: ABB
TG306G Wall-mounting cabinet, Rows: 6, 950 mm x 800 mm x 225 mm, Grounded (Class I), IP55

Availability On Request

£494.28
  • Wall-mounting cabinet, TwinLine series
  • Dimensions: 950 mm x 800 mm x 225 mm
  • Rows: 6, Grid unit: 6 GU
  • Grounded (Class I), IP55 protection
  • Impact strength IK08
  • Powder-coated in RAL 7035
  • Single-leaf door with standard double bit locking mechanism
  • Door opening angle: 180 degrees
  • Rear wall made of sheet steel
  • Cable entry: top, bottom, and side via flange openings

Read more

  • Pre-assembled for metering modules and mounting plates
  • Suitable for internal use
  • Applicable standards: EN 61439-1, EN 61439-2, EN 61439-3


Product

Manufacturer Material ID -
TG306G
Net Weight -
28.65kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
170 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
225 Millimetre
Extension possible -
Height -
950 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
222 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
156
Number of modules -
216
Number of openings for flange plates -
3
Number of rows -
6
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
170 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
800 Millimetre
Width in number of modular spacings -
36
With lock -
ABB

Availability On Request

£494.28
