2TLA020054R1210

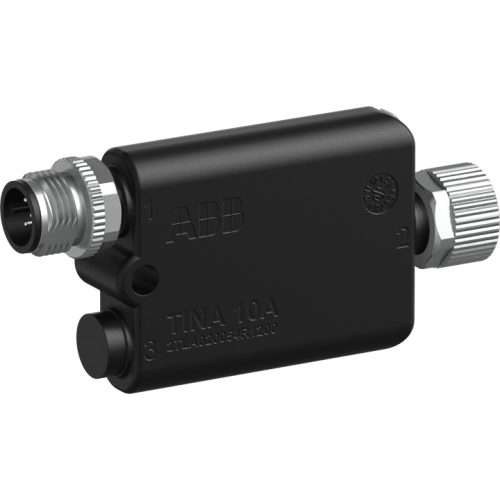

Tina 10A v2 DYNlink adapter

Manufacturer's No: Tina 10A v2     Manufacturer: ABB
Tina 10A v2 DYNlink adapter

Availability On Request

£111.10
  • Tina 10A v2 DYNlink adapter
    • Adapts OSSD outputs of ABB optical safety devices to DYNlink solution
    • Features one M12-5 male connector for DYNlink loop and one M12-8 female connector for OSSD device
  • Compatible with Vital, Pluto, and B&R X20 safety circuits
  • Designed to connect safety components with mechanical contacts like E-stops, switches, and light beams/curtains with dual outputs
  • Available in various versions based on the connected safety component type


Product

Manufacturer Material ID -
Tina 10A v2
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85369095
UNSPSC -
39122330

Technical Specification

Mounting method -
DRA (DIN-rail adapter)
Current type -
DC
Bus connection included -
Width in number of modular spacings -
77
Max. switching current -
5 Ampere
External signal voltage necessary -
Other bus systems -
Other
Suitable for C-load -
LED controlling -
Different phases connectable -
Local operation/hand operation -
With switch function -
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
35 Millimetre
Housing colour -
Black
Housing material -
Plastic
Length -
14 Millimetre
Material contact body -
Copper
Material insulation body -
PBT
Material of contact surface -
Gold
Max. current carrying capacity per I/O signal -
2 Ampere
Max. current carrying capacity per socket -
2 Ampere
Max. total current -
2 Ampere
Number of channels per connector slot -
1
Number of poles sensor/actuator slots -
5
Number of sensor-/actuator-slots -
1
Operating temperature -
-10 Degrees celsius
Operating voltage -
24 Volt
Pollution degree -
2
Rated voltage -
24 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
M12
Width -
77 Millimetre
ABB

Availability On Request

£111.10
