2CPX010320R9999

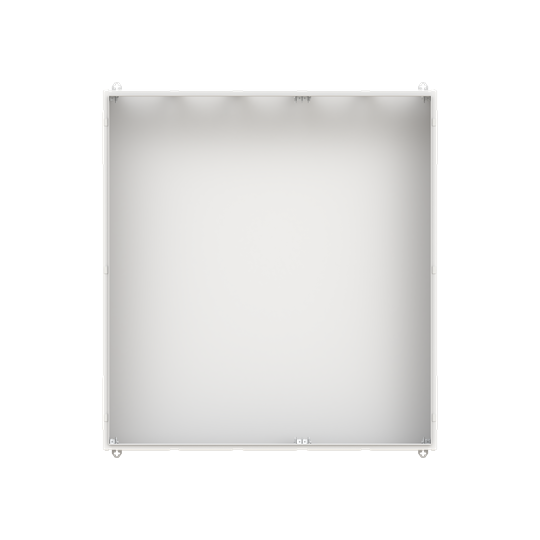

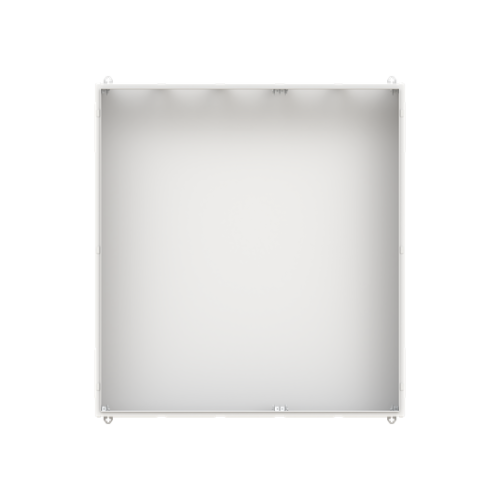

TL509GB Wall-mounting cabinet, Rows: 9, 1400 mm x 1300 mm x 275 mm, Grounded (Class I), IP30

Manufacturer's No: TL509GB     Manufacturer: ABB
TL509GB Wall-mounting cabinet, Rows: 9, 1400 mm x 1300 mm x 275 mm, Grounded (Class I), IP30

Availability On Request

£920.52
  • Wall-mounting cabinet from TwinLine series
  • Dimensions: 1400 mm x 1300 mm x 275 mm
  • Rows: 9, Grid unit: 9 GU, Space units: 540
  • Grounded (Class I), IP30 protection
  • Impact strength: IK08
  • Powder-coated in RAL 7035
  • Enclosure made of sheet steel, rear wall also sheet steel
  • Cable entry: top via pre-cut flange opening, bottom and side via pre-punched flange openings
  • Expansion options: Lateral and bottom
  • Suitable for internal use, without door

Read more

  • Applicable standards: EN 61439-1, EN 61439-2, EN 61439-3
  • Pre-assembled for metering modules, Combi-Sets, CombiLine-Module
  • Mounting plates on EDF-/WR-mounting frame


Product

Manufacturer Material ID -
TL509GB
Net Weight -
33.29kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP30
Depth -
275 Millimetre
Extension possible -
Height -
1400 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
272 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
260
Number of modules -
540
Number of openings for flange plates -
5
Number of rows -
9
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
222.5 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
None
Width -
1300 Millimetre
Width in number of modular spacings -
60
ABB

Availability On Request

£920.52
