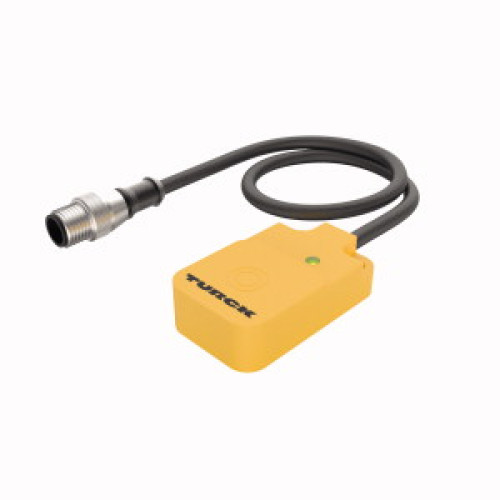

HF Read/Write Head, For Bus Line Topology with TBEN-*

Manufacturer's No: TN-Q14-0.15-RS4.47T/C53     Manufacturer: Turck Banner
HF Read/Write Head, For Bus Line Topology with TBEN-*

Availability On Request

£297.67
  • HF Read/Write Head for Bus Line Topology
  • Operating voltage: 10-30 VDC

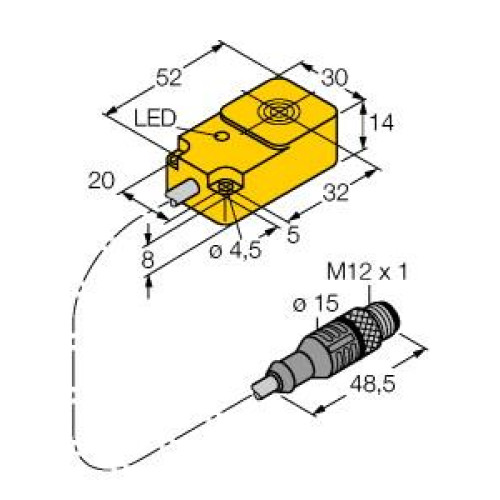

  • Non-flush, Rectangular design with a height of 14 mm
  • Active face on top
  • Material: Plastic (PBT-GF30-VO)
  • Device without end termination
  • Compatible with line topology TBEN-S-2RFID- or TBEN-L-4RFID-
  • Max. 32 nodes per line or connection
  • Maximum spur line length: 2 m
  • Maximum bus length: 50 m

Read more

  • Requires corresponding terminating resistor (accessory)
  • Suitable for static and slow dynamic applications
  • In continuous HF bus mode, commands executed simultaneously on all read/write heads
  • Recorded data stored in the module's ring buffer
  • Each read/write head processes commands individually
  • Ensure power supply performance and cable current capacity are sufficient
  • Monitor voltage drop on the line


Product

Manufacturer Material ID -
TN-Q14-0.15-RS4.47T/C53
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
39121402
