2CPX010160R9999

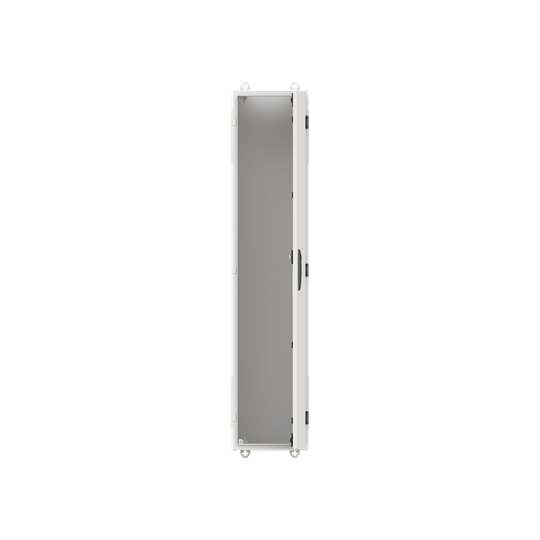

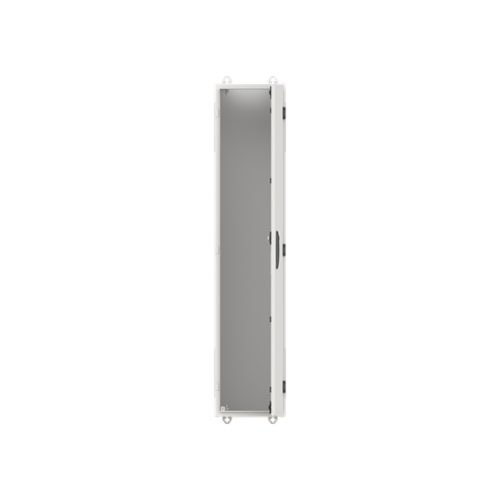

TW109G Wall-mounting cabinet, Rows: 9, 1400 mm x 300 mm x 350 mm, Grounded (Class I), IP55

Manufacturer's No: TW109G     Manufacturer: ABB
TW109G Wall-mounting cabinet, Rows: 9, 1400 mm x 300 mm x 350 mm, Grounded (Class I), IP55

Availability On Request

£651.71
  • Wall-mounting cabinet, series TwinLine
  • Dimensions: 1400 mm x 300 mm x 350 mm
  • Rows: 9, Grid unit: 9 GU, Space units: 108
  • Grounded (Class I), IP55 protection
  • Impact strength IK08, Powder-coated in RAL 7035
  • Single-leaf door with standard double bit locking mechanism
  • Door opening angle: 180 degrees, door hinge right or left
  • Rear wall and door made of sheet steel
  • Cable entry on top, bottom, and side via flange openings
  • Applicable standards: EN 61439-1, EN 61439-2, EN 61439-3

Read more

  • Pre-assembled for metering modules, Combi-Sets, CombiLine-Module
  • Mounting plates on EDF-/WR-mounting frame


Product

Manufacturer Material ID -
TW109G
Net Weight -
25.20kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
299 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
350 Millimetre
Extension possible -
Height -
1400 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
347 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
52
Number of modules -
108
Number of openings for flange plates -
1
Number of rows -
9
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
299 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
300 Millimetre
Width in number of modular spacings -
12
With lock -
ABB

Availability On Request

£651.71
