2CPX010141R9999

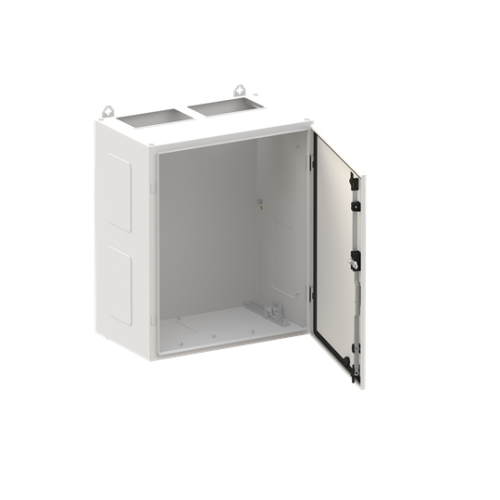

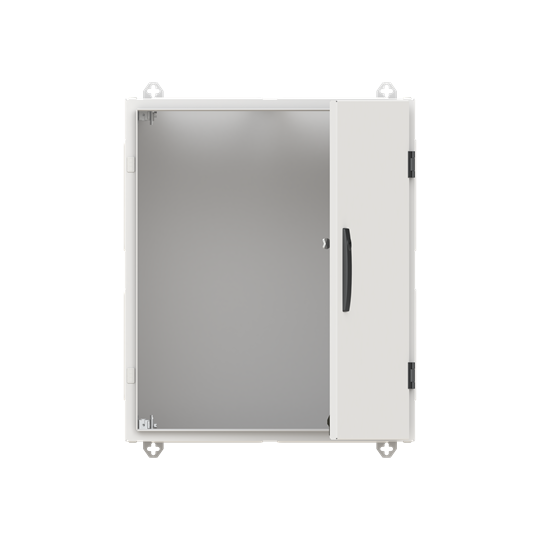

TW204G Wall-mounting cabinet, Rows: 4, 650 mm x 550 mm x 350 mm, Grounded (Class I), IP55

Manufacturer's No: TW204G     Manufacturer: ABB
TW204G Wall-mounting cabinet, Rows: 4, 650 mm x 550 mm x 350 mm, Grounded (Class I), IP55

Availability Back Order

£461.59
  • Wall-mounting cabinet from TwinLine series
  • Dimensions: 650 mm x 550 mm x 350 mm
  • Grounded (Class I) with IP55 protection
  • Suitable for internal use
  • Empty cabinet with expansion options on the lateral and bottom sides
  • Single-leaf door with a standard double bit locking mechanism
  • Impact strength IK08, powder-coated in RAL 7035
  • Enclosure made of sheet steel with rear wall
  • Cable entry on top, bottom, and side via flange openings
  • Conforms to standards: EN 61439-1, EN 61439-2, EN 61439-3

Read more

  • Pre-assembled for metering modules, Combi-Sets, CombiLine-Module
  • Mounting plates compatible with EDF-/WR-mounting frame
  • Overall height: 0, panel width: 2, Space units: 96
  • Door opens 180 degrees, hinge can be placed on the right or left


Product

Manufacturer Material ID -
TW204G
Net Weight -
19.54kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
299 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
350 Millimetre
Extension possible -
Height -
650 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
347 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
104
Number of modules -
96
Number of openings for flange plates -
2
Number of rows -
4
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
299 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
550 Millimetre
Width in number of modular spacings -
24
With lock -
ABB
