2CPX010168R9999

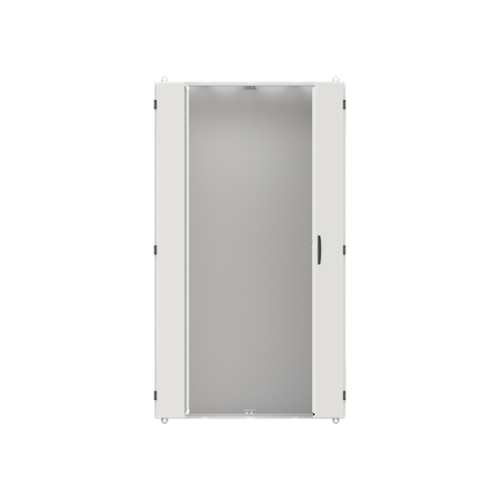

TW412G Floor-standing cabinet, Rows: 12, 1850 mm x 1050 mm x 350 mm, Grounded (Class I), IP55

Manufacturer's No: TW412G     Manufacturer: ABB
TW412G Floor-standing cabinet, Rows: 12, 1850 mm x 1050 mm x 350 mm, Grounded (Class I), IP55

Availability On Request

£1,519.19
  • Floor-standing cabinet from TwinLine series
  • Dimensions: 1850 mm x 1050 mm x 350 mm
  • Grounded (Class I) with IP55 protection
  • Empty cabinet with expansion options
  • Suitable for internal use
  • Double door with standard locking mechanism
  • Impact strength IK08, powder-coated in RAL 7035
  • Complies with standards: EN 61439-1, EN 61439-2, EN 61439-3
  • Cable entry on top, bottom, and side
  • Grid unit: 12 GU, overall height: 8, panel width: 4

Read more

  • Space units: 576, pre-assembled for metering modules
  • Mounting plates on EDF-/WR-mounting frame


Product

Manufacturer Material ID -
TW412G
Net Weight -
78.30kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
299 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
350 Millimetre
Extension possible -
Height -
1850 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
347 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
208
Number of modules -
576
Number of openings for flange plates -
4
Number of rows -
12
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
299 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Double
Width -
1050 Millimetre
Width in number of modular spacings -
48
With lock -
ABB
