2CPX077840R9999

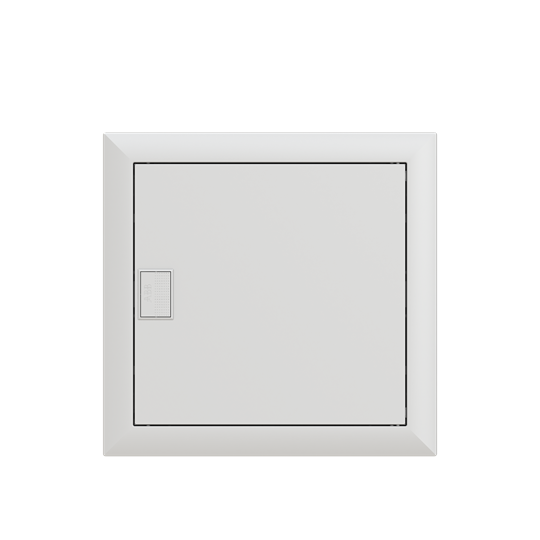

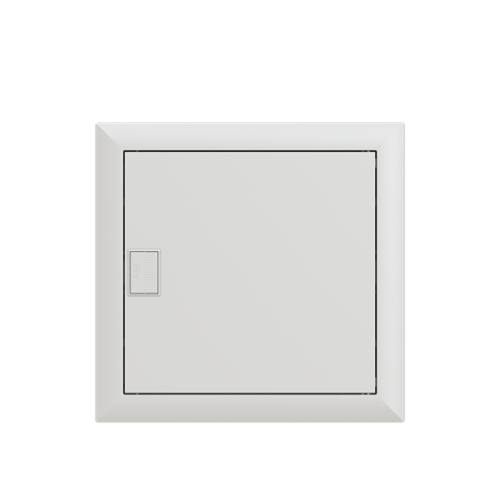

UK612E2 Consumer unit , Flush-/ hollow wall mounting, 12 modules, 1 row(s), IP30, Door: Single, Dimensions: 372 mm x 384 mm x 97

Manufacturer's No: UK612E2     Manufacturer: ABB
UK612E2 Consumer unit , Flush-/ hollow wall mounting, 12 modules, 1 row(s), IP30,  Door: Single, Dimensions: 372 mm x 384 mm x 97 mm

Availability On Request

£71.55
  • Consumer unit model UK612E2
  • Flush-/hollow wall mounting
  • 12 modules, 1 row
  • Dimensions: 372 mm x 384 mm x 97 mm
  • IP30 protection rating
  • Single door with TIP-in closure
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C
  • Powder-coated in RAL 9016

Read more

  • Enclosure made of thermoplast with metal door
  • Impact strength: IK07
  • Double insulated (class II)
  • Applicable standards: EN 60670-24
  • Cable entry on top, bottom, and side
  • Shutter frame dimensions: 372 mm x 384 mm x 9 mm
  • Space for 12 units with row distance of 125 mm
  • Plastic covers with 90-degree press and turn closure
  • N/PE screw terminal and cable fastening rail integrated
  • Device support is removable and assembled with device carrier


Product

Manufacturer Material ID -
UK612E2
Net Weight -
2.62kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
372 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
1
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
325 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
