2CPX077846R9999

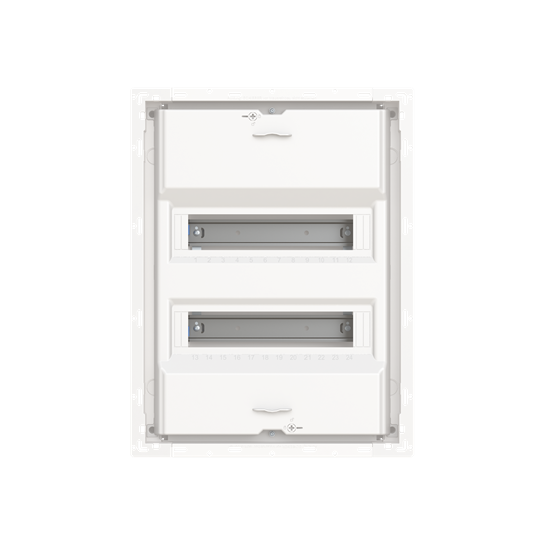

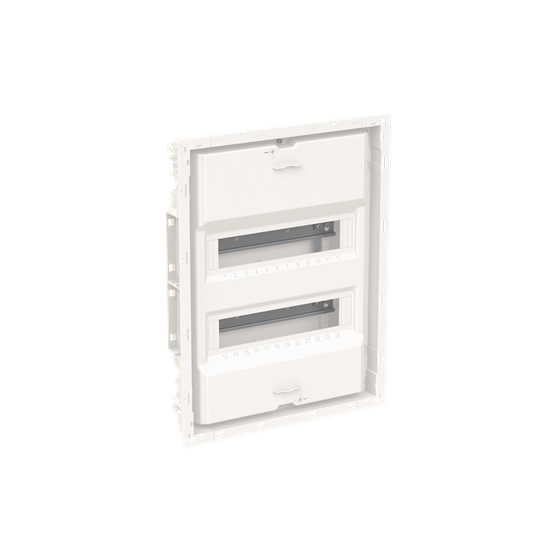

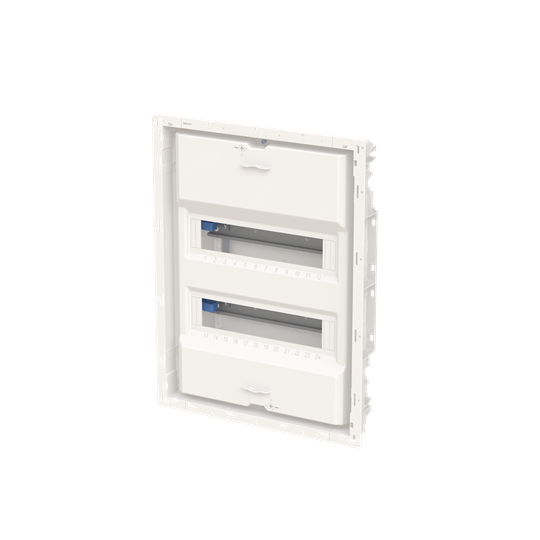

UK624EB Consumer unit , Flush-/ hollow wall mounting, 24 modules, 2 row(s), IP30, Door: Without Door, Dimensions: 472 mm x 362 mm

Manufacturer's No: UK624EB     Manufacturer: ABB
UK624EB Consumer unit , Flush-/ hollow wall mounting, 24 modules, 2 row(s), IP30,  Door: Without Door, Dimensions: 472 mm x 362 mm x 97 mm

Availability On Request

£142.27
  • Consumer unit for internal use
  • Flush-/hollow wall mounting
  • 24 modules, 2 rows
  • Dimensions: 472 mm x 362 mm x 97 mm
  • IP30 protection class
  • Double insulated (Class II)
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C
  • Impact strength: IK07

Read more

  • Enclosure material: thermoplast, RAL 9016
  • Cable entry: top, bottom, side, rear wall pre-punched
  • Space for 24 units
  • Row distance: 125 mm
  • Plastic covers with 90-degree press and turn closure
  • N/PE screw terminal
  • Cable fastening rail integrated
  • Device support removable


Product

Manufacturer Material ID -
UK624EB
Net Weight -
2.13kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
472 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
2
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
450 Millimetre
Recess width -
337 Millimetre
Type of covering -
Optional
Width -
362 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
ABB
