2CPX031370R9999

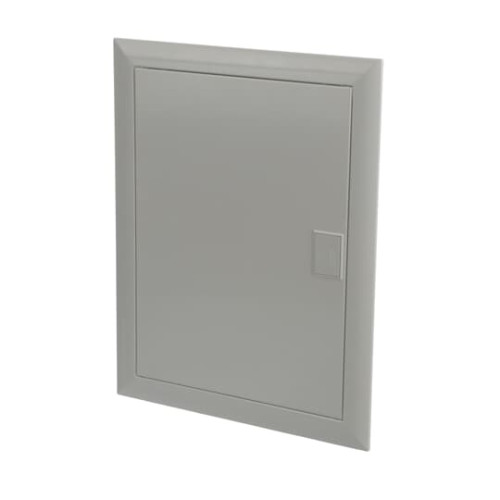

UK624N3 Consumer unit , Flush-/ hollow wall mounting, 24 modules, 2 row(s), IP30, Door: Single, Dimensions: 497 mm x 384 mm x 97

Manufacturer's No: UK624N3     Manufacturer: ABB
UK624N3 Consumer unit , Flush-/ hollow wall mounting, 24 modules, 2 row(s), IP30,  Door: Single, Dimensions: 497 mm x 384 mm x 97 mm

Availability On Request

£216.74
  • Consumer unit model UK624N3
  • Flush-/hollow wall mounting
  • 24 modules, 2 rows
  • Dimensions: 497 mm x 384 mm x 97 mm
  • IP30 protection class
  • Single door with TIP-in closure
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C
  • Powder-coated in RAL 9016

Read more

  • Enclosure made of thermoplast with metal door
  • Impact strength: IK07
  • Double insulated (Class II)
  • Applicable standards: EN 60670-24
  • Expansion options: Lateral and bottom
  • Cable entry on top, bottom, and sides
  • Space for 24 space units with 125 mm row distance
  • Plastic covers with 90-degree press and turn closure
  • N/PE Quick-terminal for easy installation
  • Cable fastening rail integrated
  • Device support is removable and assembled with device carrier


Product

Manufacturer Material ID -
UK624N3
Net Weight -
3.48kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
497 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
2
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
450 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
ABB

Availability On Request

£216.74
