2CPX031381R9999

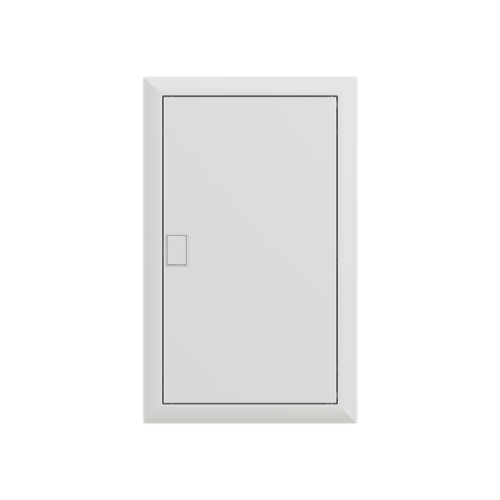

UK636K Consumer unit , Flush-/ hollow wall mounting, 36 modules, 3 row(s), IP30, Door: Single, Dimensions: 622 mm x 384 mm x 97 m

Manufacturer's No: UK636K     Manufacturer: ABB
UK636K Consumer unit , Flush-/ hollow wall mounting, 36 modules, 3 row(s), IP30,  Door: Single, Dimensions: 622 mm x 384 mm x 97 mm

Availability On Request

£201.43
  • Consumer unit model UK636K
  • Flush-/hollow wall mounting
  • 36 modules, 3 rows
  • Dimensions: 622 mm x 384 mm x 97 mm
  • IP30 protection class
  • Single door with closed doorframe
  • Double insulated (Class II)
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C

Read more

  • Powder-coated in RAL 9016
  • Enclosure made of thermoplast with metal door
  • Door hinge can be on the right or left
  • Cable entry on top, bottom, and sides
  • Impact strength: IK07
  • Applicable standards: EN 60670-24
  • Space for lateral and bottom expansion
  • Shutter frame dimensions: 622 mm x 384 mm x 9 mm
  • Row distance: 125 mm
  • Plastic covers with 90-degree press and turn closure
  • Cable fastening rail integrated
  • Assembled with device carrier, removable device support


Product

Manufacturer Material ID -
UK636K
Net Weight -
4.13kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
SI
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Extension possible -
Height -
622 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Number of rows -
3
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
575 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
ABB

Availability On Request

£201.43
