2CPX031396R9999

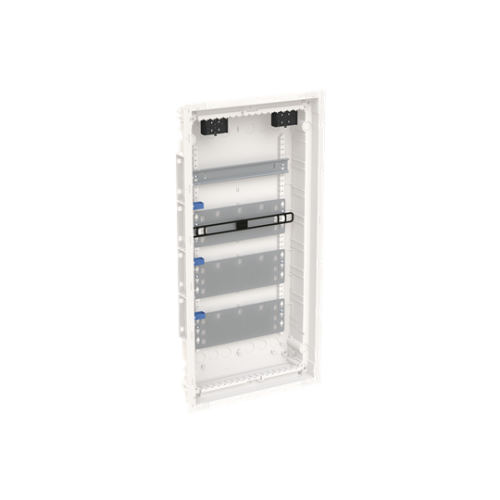

UK648MB Multimedia unit , Flush-/ hollow wall mounting, 48 modules, 4 row(s), IP30, Door: Without Door, Dimensions: 722 mm x 362

Manufacturer's No: UK648MB     Manufacturer: ABB
UK648MB Multimedia unit , Flush-/ hollow wall mounting, 48 modules, 4 row(s), IP30,  Door: Without Door, Dimensions: 722 mm x 362 mm x 97 mm

Availability On Request

£267.57

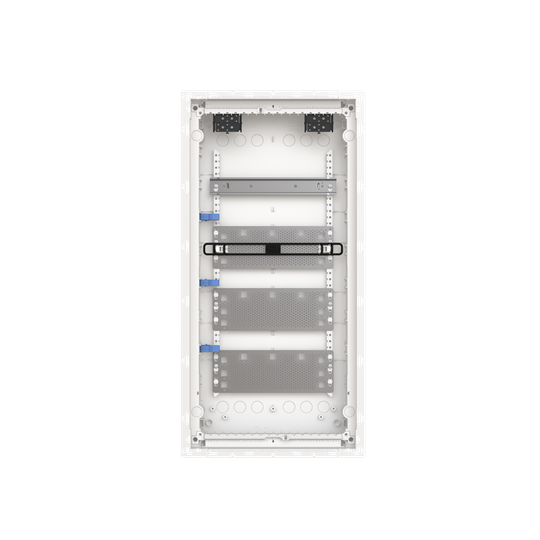

  • Multimedia unit UK648MB
  • Flush-/hollow wall mounting
  • 48 modules, 4 rows
  • Dimensions: 722 mm x 362 mm x 97 mm
  • Expansion options: lateral and bottom
  • Internal use
  • Class of protection II (double insulated)
  • Degree of protection IP30
  • Applicable standards: EN 60670-24
  • Impact strength IK07

Read more

  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C
  • Enclosure material: thermoplast (RAL 9016)
  • Cable entry: top, bottom, side, rear wall
  • Space units: 48
  • Cable fastening rail integrated
  • Assembled with perforated sheet steel mounting plate and DIN rail


Product

Manufacturer Material ID -
UK648MB
Net Weight -
2.61kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Extension possible -
Height -
722 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Number of rows -
4
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
700 Millimetre
Recess width -
337 Millimetre
Type of covering -
Optional
Width -
362 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With mounting plate -
ABB

Availability On Request

£267.57
