2CPX031383R9999

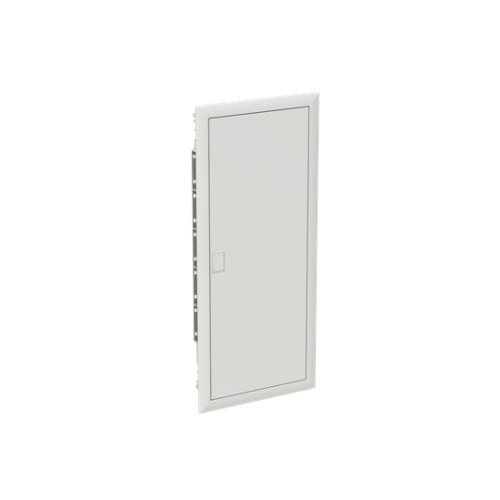

UK660K Consumer unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30, Door: Single, Dimensions: 872 mm x 384 mm x 97 m

Manufacturer's No: UK660K     Manufacturer: ABB
UK660K Consumer unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30,  Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Availability On Request

£316.41
  • Consumer unit model UK660K
  • Flush-/ hollow wall mounting
  • 60 modules, 5 rows
  • IP30 protection rating
  • Single door with closed doorframe
  • Dimensions: 872 mm x 384 mm x 97 mm
  • Expansion options: lateral and bottom
  • Class of protection II (double insulated)
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A

Read more

  • Glow wire resistance: 850°C
  • Powder-coated in RAL 9016
  • Enclosure made of thermoplast with metal door
  • Impact strength: IK07
  • Applicable standards: EN 60670-24
  • Cable entry on top, bottom, and sides
  • Door opening angle: 120 degrees
  • Shutter frame dimensions: 872 mm x 384 mm x 9 mm
  • Space for 60 units with row distance of 125 mm
  • Plastic covers with 90-degree press and turn closure
  • Integrated cable fastening rail
  • Assembled with device carrier, removable device support


Product

Manufacturer Material ID -
UK660K
Net Weight -
5.80kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Extension possible -
Height -
872 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
