2CPX031397R9999

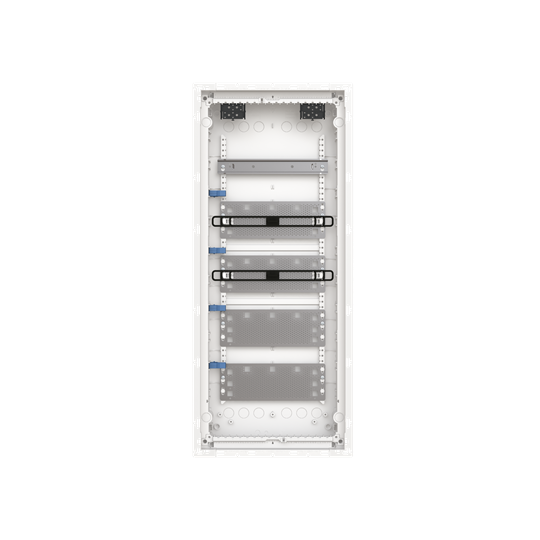

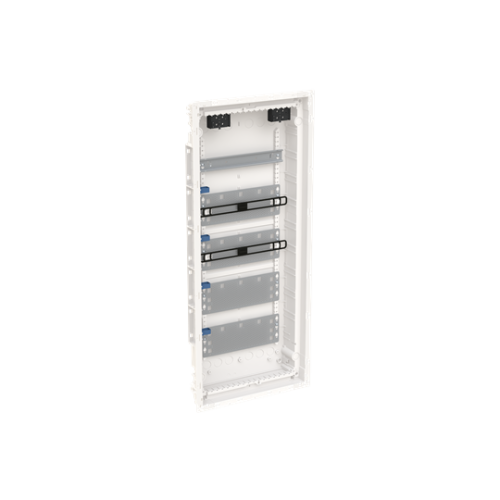

UK660MB Multimedia unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30, Door: Without Door, Dimensions: 847 mm x 362

Manufacturer's No: UK660MB     Manufacturer: ABB
UK660MB Multimedia unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30,  Door: Without Door, Dimensions: 847 mm x 362 mm x 97 mm

Availability On Request

£269.86
  • Multimedia unit UK660MB
  • Flush-/hollow wall mounting
  • 60 modules, 5 rows
  • Dimensions: 847 mm x 362 mm x 97 mm
  • Expansion options: Lateral and bottom
  • Internal use
  • Class of protection II (double insulated)
  • Degree of protection IP30
  • Impact strength IK07
  • Rated operational voltage: 400V AC 50/60 Hz

Read more

  • Rated current: 63 A
  • Glow wire resistance: 850°C
  • Enclosure material: Thermoplast
  • Cable entry on top, bottom, and sides
  • RAL 9016 color
  • Cable fastening rail integrated
  • Assembled with perforated sheet steel mounting plate and DIN rail


Product

Manufacturer Material ID -
UK660MB
Net Weight -
3.12kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Extension possible -
Height -
847 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Type of covering -
Optional
Width -
362 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With mounting plate -
