2CPX031386R9999

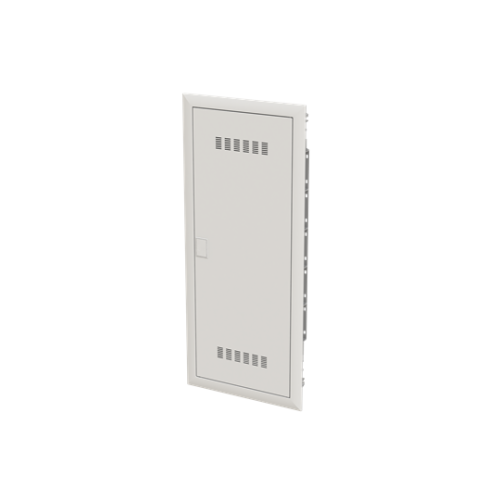

UK660MV Multimedia unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30, Door: Single, Dimensions: 872 mm x 384 mm x 9

Manufacturer's No: UK660MV     Manufacturer: ABB
UK660MV Multimedia unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30,  Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Availability On Request

£638.77
  • Multimedia unit UK660MV
  • Flush-/ hollow wall mounting
  • 60 modules, 5 row(s)
  • Dimensions: 872 mm x 384 mm x 97 mm
  • IP30 protection rating
  • Single door with TIP-in closure
  • Double insulated (Class II)
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C

Read more

  • Powder-coated in RAL 9016
  • Enclosure made of thermoplast with ventilated door
  • Cable entry on top, bottom, and sides
  • Applicable standards: EN 60670-24, Impact strength IK07
  • Expansion options: Lateral and bottom
  • Space for patch panel and rotatable triple socket outlet


Product

Manufacturer Material ID -
UK660MV
Net Weight -
5.79kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Extension possible -
Height -
872 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
With mounting plate -
ABB

Availability On Request

£638.77
