2CPX031378R9999

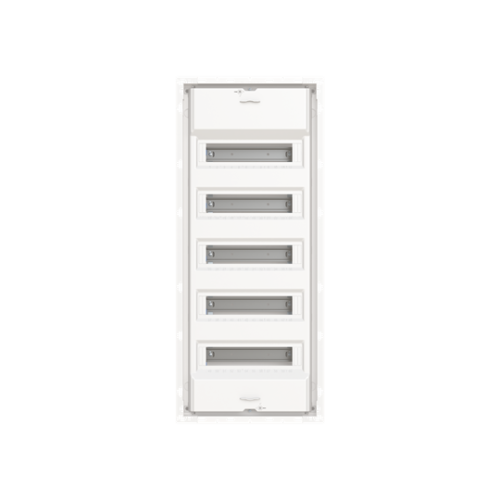

UK660NB Consumer unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30, Door: Without Door, Dimensions: 847 mm x 362 mm

Manufacturer's No: UK660NB     Manufacturer: ABB
UK660NB Consumer unit , Flush-/ hollow wall mounting, 60 modules, 5 row(s), IP30,  Door: Without Door, Dimensions: 847 mm x 362 mm x 97 mm

Availability On Request

£311.38
  • Consumer unit model UK660NB
  • Flush-/hollow wall mounting
  • 60 modules, 5 rows
  • Dimensions: 847 mm x 362 mm x 97 mm
  • IP30 protection class
  • Expansion options: lateral and bottom
  • Double insulated (Class II)
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 63 A
  • Glow wire resistance: 850°C

Read more

  • Impact strength: IK07
  • Enclosure material: thermoplast (RAL 9016)
  • Cable entry: top, bottom, side, rear wall pre-punched
  • Space for 60 units
  • Row distance: 125 mm
  • Plastic covers with 90-degree press and turn closure
  • N/PE Quick-terminal
  • Cable fastening rail integrated
  • Assembled with device carrier, removable device support


Product

Manufacturer Material ID -
UK660NB
Net Weight -
3.84kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
847 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Type of covering -
Optional
Width -
362 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
ABB

Availability On Request

£311.38
