2CPX031398R9999

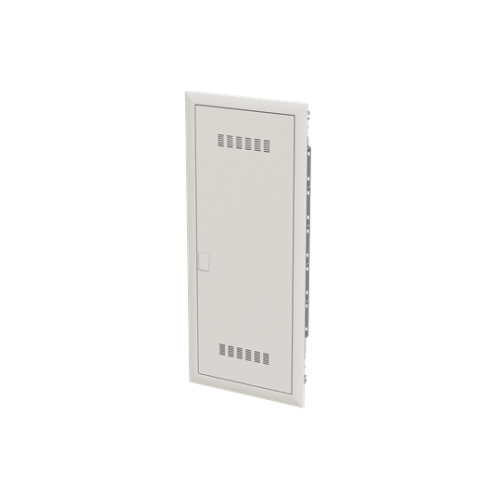

UK662CV Combi Unit , Flush-/ hollow wall mounting, 24 modules, 5 row(s), IP30, Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Manufacturer's No: UK662CV     Manufacturer: ABB
UK662CV Combi Unit , Flush-/ hollow wall mounting, 24 modules, 5 row(s), IP30,  Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Availability Back Order

£620.88
  • Model: UK662CV Combi Unit
  • Mounting: Flush-/ hollow wall
  • Modules: 24 modules, 5 rows
  • Dimensions: 872 mm x 384 mm x 97 mm
  • IP Rating: IP30
  • Door: Single, closed doorframe
  • Protection Class: Class II (double insulated)
  • Voltage: 400V AC 50/60 Hz
  • Current: 63 A
  • Glow Wire Resistance: 850°C

Read more

  • Coating: Powder-coated in RAL 9016
  • Material: Thermoplast enclosure, sheet steel door
  • Enclosure Features: Ventilated door, TIP-in closure
  • Cable Entry: Top, bottom, and side pre-punched
  • Shutter Frame Dimensions: 872 x 384 x 9 mm
  • Space Units: 24
  • Row Distance: 125 mm
  • Covers: Plastic, 90-degree press and turn closure
  • Components: Device carrier, segregation wall, perforated mounting plate, socket outlet
  • Additional Features: Expansion options, applicable standards EN 60670-24, Impact strength IK07, door hinge right or left, cable fastening rail integrated, device support removable


Product

Manufacturer Material ID -
UK662CV
Net Weight -
5.74kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
872 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
With mounting plate -
ABB

Availability Back Order

£620.88
