2CPX031400R9999

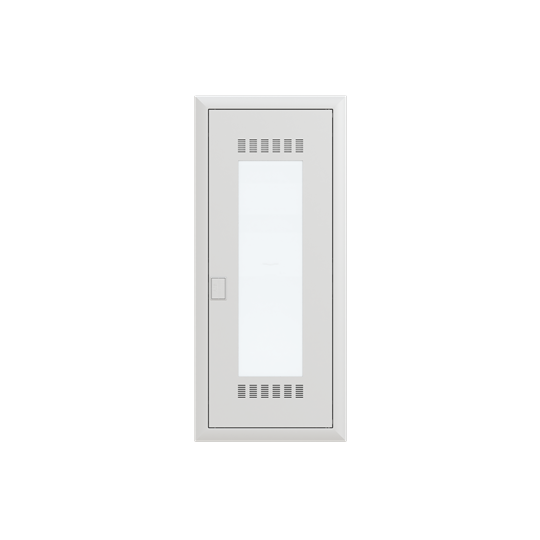

UK662CW Combi Unit , Flush-/ hollow wall mounting, 24 modules, 5 row(s), IP30, Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Manufacturer's No: UK662CW     Manufacturer: ABB
UK662CW Combi Unit , Flush-/ hollow wall mounting, 24 modules, 5 row(s), IP30,  Door: Single, Dimensions: 872 mm x 384 mm x 97 mm

Availability On Request

£674.54
  • Model: UK662CW Combi Unit
  • Mounting: Flush-/ hollow wall
  • Size: 24 modules, 5 rows, 872 mm x 384 mm x 97 mm
  • IP Rating: IP30
  • Door: Single, closed doorframe, sheet steel, RAL 9016
  • Expansion Options: Lateral and bottom
  • Internal use, double insulated (Class II)
  • Rated Voltage: 400V AC 50/60 Hz
  • Rated Current: 63 A
  • Glow Wire Resistance: 850°C

Read more

  • Enclosure: Thermoplast, powder-coated
  • Ventilated semi-transparent wifi door, TIP-in closure
  • Cable Entry: Top, bottom, side, rear pre-punched
  • Shutter Frame: 872 x 384 x 9 mm
  • Space Units: 24, Row Distance: 125 mm
  • Covers: Plastic, 90-degree press and turn closure
  • Features: N/PE Quick-terminal, cable fastening rail, device carrier, segregation wall, mounting plate, socket outlet
  • Device Support: Removable


Product

Manufacturer Material ID -
UK662CW
Net Weight -
5.42kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP30
Depth -
97 Millimetre
Earthing terminal block -
Extension possible -
Height -
872 Millimetre
Housing material -
Plastic
Internal depth -
81 Millimetre
Mounting method -
Other
Neutral terminal block -
Number of rows -
5
RAL number -
9016
Recess depth -
88 Millimetre
Recess height -
825 Millimetre
Recess width -
337 Millimetre
Signal passing door -
Transparent cover/door -
Type of closure -
Push button
Type of covering -
Door
Type of door -
Single
Width -
384 Millimetre
Width in number of modular spacings -
12
With DIN-rail -
With lock -
With mounting plate -
ABB

Availability On Request

£674.54
