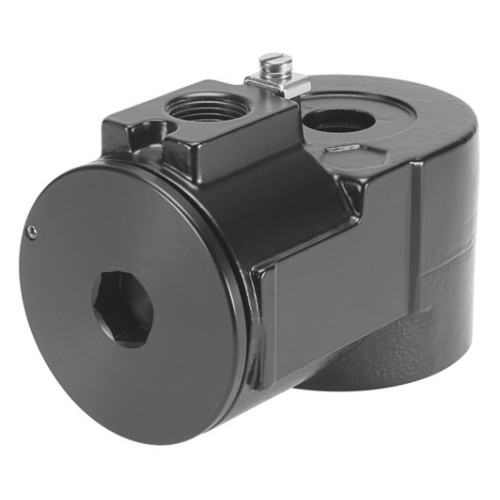

VACC-S18-70-K4-1U-EX4D Solenoid coil

Manufacturer's No: VACC-S18-70-K4-1U-EX4D     Manufacturer: Festo
VACC-S18-70-K4-1U-EX4D Solenoid coil

Availability On Request

£888.09
  • Solenoid coil model: VACC-S18-70-K4-1U-EX4D
  • Armature tube diameter: 18 mm
  • Power: 7 W
  • Voltage: 24 V DC and 24 V AC
  • Explosion protection: II 2GD, EPL Db/Gb
  • Actuation type: Electric
  • Duty cycle: 100%
  • Insulation class: H
  • Coil data: 24 V AC: 50/60 Hz, 7.0 VA
  • Coil data: 24 V DC: 7.0 W

Read more

  • Permissible voltage fluctuations: -15%/+10%
  • Certifications: CE (EU ATEX, EU RoHS), UKCA (UK EX, UK RoHS), IECEx
  • ATEX categories: II 2G (gas), II 2D (dust)
  • Explosion protection types: Ex db IIC (gas), Ex tb IIIC (dust)
  • Ambient temperature range: -50 °C to +90 °C
  • Corrosion resistance class: CRC 4
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Degree of protection: IP65
  • Product weight: 1700 g
  • Electrical connection: Terminal box, cable entry thread M20x1.5
  • Material: Solenoid coil - Wrought aluminium alloy, Grey cast iron
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VACC-S18-70-K4-1U-EX4D
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85059029
Country of Origin -
CH
UNSPSC -
30102206
Festo

Availability On Request

£888.09
