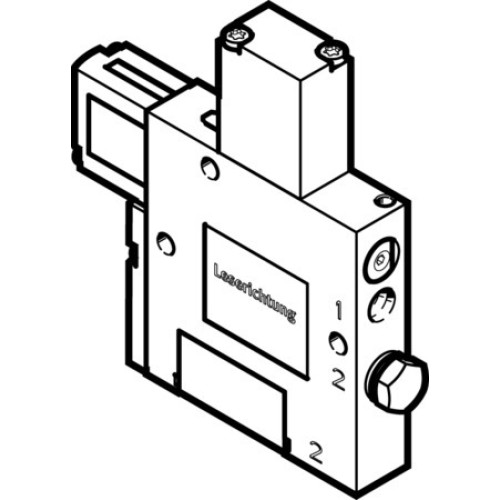

VADM-70 Vacuum generator

Manufacturer's No: VADM-70     Manufacturer: Festo
VADM-70 Vacuum generator

Availability Back Order

£216.78
  • Vacuum generator VADM-70 with integrated solenoid valve for vacuum On/Off
  • Nominal size Laval nozzle: 0.7 mm
  • Grid dimension: 15 mm
  • Silencer design: Closed
  • Ejector characteristic: High vacuum
  • Operating pressure range: 0.15 MPa to 21.75 PSI
  • Max. vacuum: 85%
  • Nominal operating pressure: 0.6 MPa to 87 PSI
  • Air supply time at nominal operating pressure: 2.2 s
  • Operational voltage range DC: 21.6 V to 26.4 V

Read more

  • Duty cycle: 100%
  • Approval: c UL us - Recognized (OL)
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature range: 0°C to 60°C
  • Degree of protection: IP65
  • Product weight: 140 g
  • Electrical connection: Plugs
  • Type of mounting: With through-hole or via female thread
  • Pneumatic connection, port 1: M5
  • Pneumatic connection, port 3: Integrated silencer
  • Vacuum connection: G1/8
  • Material seals: NBR
  • Material receiver nozzle: Brass, nickel-plated
  • Material filter: PA
  • Material filter housing: PC
  • Material housing: Wrought aluminium alloy
  • Material silencer: PE and POM
  • Material piston: POM
  • Material transmitter nozzle: Nickel-plated brass
  • Note: RoHS-compliant, lubricated operation not possible

Accessories

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

FESTO PUSH-IN FITTING

Product Code - 153306
Price £2.63
Back Order

PUN-H-8X1.25-TBL 6MM PLASTIC TUBING

Product Code - 8048691
Price £1.61
Back Order

QSML-M5-6 PUSH-IN L-FITTING

Product Code - 153335
Price £3.66
Back Order

QS-G1/8-8-I PUSH-IN FITTING

Product Code - 186109
Price £2.98
Back Order

QS-G1/8-8 PUSH-IN FITTING

Product Code - 186098
Price £2.83
Back Order

QSL-G1/8-8 PUSH-IN L-FITTING

Product Code - 186119
Price £4.24
Back Order

PUN-H-8X1 25-BL PLATIC TUBING

Product Code - 197385
Price £1.61
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
VADM-70
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability Back Order

£216.78
