6SL35460FB211PA0

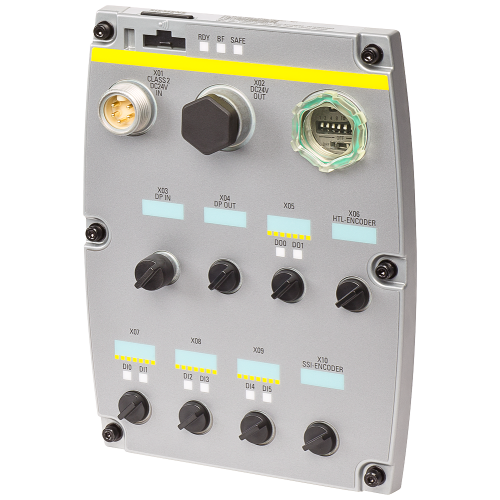

SINAMICS G120D CU250D-2 DP-F

Manufacturer's No: 6SL3546-0FB21-1PA0     Manufacturer: Siemens
SINAMICS G120D CU250D-2 DP-F

Availability Available to order

£1,109.13
  • Control Unit: SINAMICS G120D CU250D-2 DP-F PROFIBUS
  • Safety Integrated with positioning capability (EPOS)
  • Inputs: 6 digital inputs, 3 functional digital inputs, 2 analog inputs
  • Outputs: 2 digital outputs, 1 functional digital output
  • Interfaces: USB, SD/MMC card, HTL, SSI encoder
  • Degree of protection: IP65
  • Ambient temperature: 0 to +55°C
  • Excludes Power Module


Product

Manufacturer Material ID -
6SL3546-0FB21-1PA0
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of analogue outputs -
-
Mains voltage -
- Volt
Mains frequency -
UN
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output frequency -
- Hertz
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP65
Application in industrial area permitted -
Depth -
55 Millimetre
Height -
208 Millimetre
Number of analogue inputs -
0
Number of digital inputs -
6
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
10
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Supporting protocol for PROFIBUS -
Supporting protocol for PROFIsafe -
Width -
153 Millimetre
With optical interface -
With PC connection -

Availability Available to order

£1,109.13
