6SL32105HB101UF0

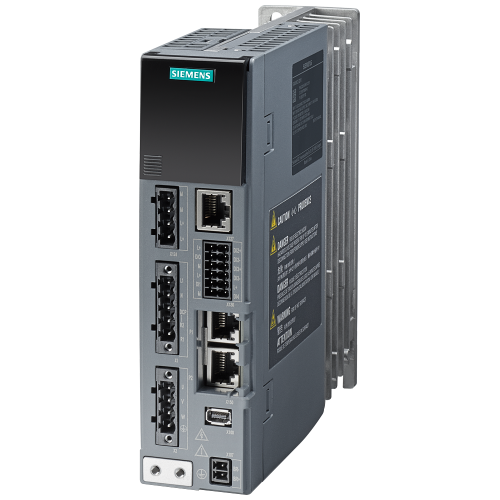

SINAMICS S210 Input voltage: 200-240V 1AC; -10%/+10%; 1.4A; 45-66Hz; Output voltage: 0-input V; 0.8

Manufacturer's No: 6SL3210-5HB10-1UF0     Manufacturer: Siemens
SINAMICS S210 Input voltage: 200-240V 1AC; -10%/+10%; 1.4A; 45-66Hz; Output voltage: 0-input V; 0.8

Availability Back Order

£870.66
  • Input voltage: 200-240V, 1AC, 45-66Hz, 1.4A
  • Output voltage: 0-input V, 0.8A, 0-550Hz
  • Motor power: 0.1 kW
  • Degree of protection: IP20
  • Frame size: A
  • Dimensions: 45 x 170 x 170 mm (WxHxD)

Accessories

Instructional video
Product video
Product video
Question and Answer (Q&A video)
Product video
Product video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
6SL3210-5HB10-1UF0
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
Export Control Regulations -
EAR99H / N
UNSPSC -
32121704

Technical Specification

Number of HW-interfaces other -
-
Max. output frequency -
- Hertz
Max. output at quadratic load at rated output voltage -
- Kilowatt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
STATFLAG -
B
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Depth -
172.4 Millimetre
Height -
170 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
0.1 Kilowatt
Max. output voltage -
240 Volt
Nominal output current I2N -
0.8 Ampere
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
5
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
1
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
45 Millimetre
With PC connection -
