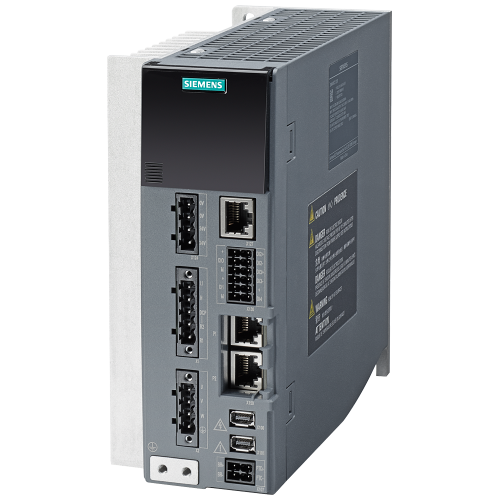

6SL53101BB108CF0

SINAMICS S210 input voltage: 200-240 V 1AC; -10%/+10%; 9.3 A; 45-66 Hz; output voltage: 0-input V 4.4 A; 0-550 Hz; motor: 0.75 kW;

Manufacturer's No: 6SL5310-1BB10-8CF0     Manufacturer: Siemens
SINAMICS S210 input voltage: 200-240 V 1AC; -10%/+10%; 9.3 A; 45-66 Hz; output voltage: 0-input V 4.4 A; 0-550 Hz; motor: 0.75 kW; degree of protection: IP20; frame size C; 75 x 170 x 195 (WxHxD)

Availability In Stock

£947.11
  • Input voltage: 200-240 V, 1AC, 45-66 Hz, 9.3 A
  • Output voltage: 0 to input V, 4.4 A, 0-550 Hz
  • Motor power: 0.75 kW
  • Degree of protection: IP20
  • Frame size: C
  • Dimensions: 75 x 170 x 195 mm (WxHxD)


Product

Manufacturer Material ID -
6SL5310-1BB10-8CF0
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
85044095
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: 3A999A
UNSPSC -
32121705

Technical Specification

Application in industrial area permitted -
Depth -
197.4 Millimetre
Height -
170 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
0.75 Kilowatt
Max. output voltage -
240 Volt
Nominal output current I2N -
4.4 Ampere
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
5
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
1
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for EtherNet/IP -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
74.5 Millimetre
With PC connection -
