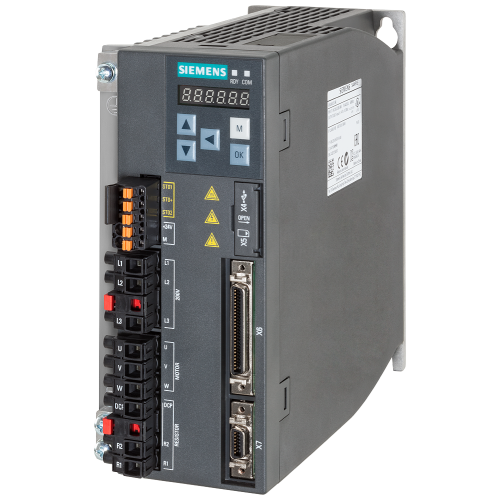

6SL32105FB108UA0

SINAMICS V90 INPUT: 1/3 AC 200-240V -15%/+10% 10.4A/5.0A 45-66HZ OUTPUT: 0-INPUT V 4.7A :3.5KW frame size C, 80X170X195(WXHXD)

Manufacturer's No: 6SL3210-5FB10-8UA0     Manufacturer: Siemens
SINAMICS V90 INPUT: 1/3 AC 200-240V -15%/+10% 10.4A/5.0A 45-66HZ OUTPUT: 0-INPUT V 4.7A :3.5KW frame size C, 80X170X195(WXHXD)

Availability Back Order

£601.00
  • SINAMICS V90
    • Input Voltage: 200-240 V AC, 1/3-phase
    • Input Current: 10.4 A (1-phase), 5.0 A (3-phase)
    • Output Voltage: 0 - Input
    • Output Current: 4.7 A
    • Motor Power: 0.75 kW
    • Frequency Range: 0-330 Hz
    • Degree of Protection: IP20
    • Size: C, 80 x 170 x 195 mm (W x H x D)

Accessories

Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
6SL3210-5FB10-8UA0
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output frequency -
- Hertz
Max. output at quadratic load at rated output voltage -
- Kilowatt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Max. output at linear load at rated output voltage -
750 Kilowatt
4-quadrant operation possible -
Application in domestic- and commercial area permitted -
Depth -
195 Millimetre
Height -
170 Millimetre
Integrated breaking resistance -
Mains voltage -
200 Volt
Max. output voltage -
212 Volt
Nominal output current I2N -
4.7 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of digital inputs -
10
Number of digital outputs -
6
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
1
Number of phases input -
1
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-15 Percentage
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Type of converter -
U converter
Width -
80 Millimetre
With PC connection -
