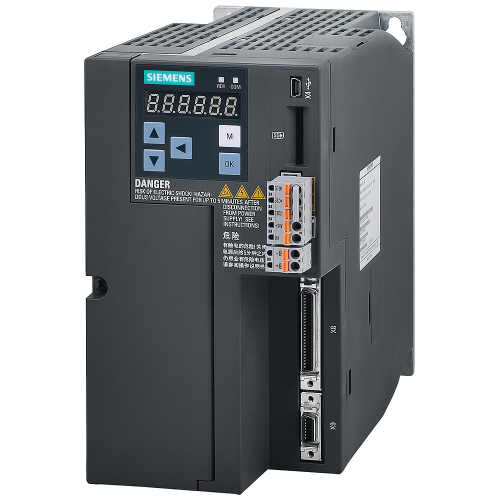

6SL32105FE115UA0

3 phase, 380 V, 1.5kW, 5.3 A, P and analog connectivity, speed, torque and positioning, internal braking resistor, to loaded 300%

Manufacturer's No: 6SL3210-5FE11-5UA0     Manufacturer: Siemens
3 phase, 380 V, 1.5kW, 5.3 A, P and analog connectivity, speed, torque and positioning, internal braking resistor, to loaded 300%

Availability Back Order

£766.00
  • SINAMICS V90
    • Input Voltage: 380-480 V, 3 A (-15%/+10%)
    • Output Voltage: 0-Input, 5.3 A, 0-330 Hz
    • Motor Power: 1.5/1.75 kW
    • Max Output Current: 6.6 A
    • Frequency Range: 45-66 Hz
    • Degree of Protection: IP20
    • Size: B, 100 x 180 x 220 mm (W x H x D)

Accessories

Product video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
6SL3210-5FE11-5UA0
Net Weight -
3.06kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
-
Siemens
-
Siemens
-
Siemens
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Max. output frequency -
- Hertz
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Max. output at linear load at rated output voltage -
1750 Kilowatt
Depth -
220 Millimetre
Height -
180 Millimetre
Mains voltage -
380 Volt
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of digital inputs -
10
Number of digital outputs -
6
Number of phases input -
3
Relative symmetric net voltage tolerance -
-15 Percentage
Width -
100 Millimetre

Availability Back Order

£766.00
