6SL32105BB175BV1

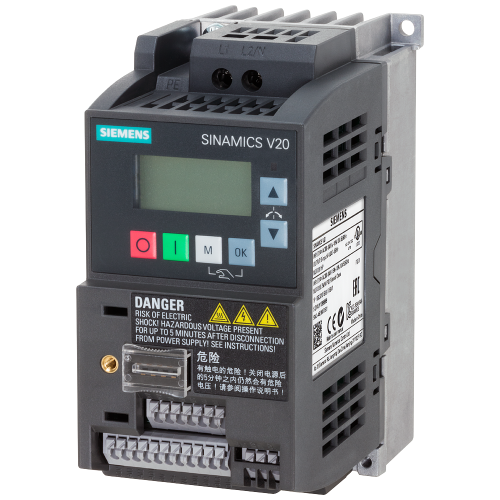

SINAMICS V20, IP20 / UL open type, FSAB, B, 200-240 V 1 AC, 0,75 kW

Manufacturer's No: 6SL3210-5BB17-5BV1     Manufacturer: Siemens
SINAMICS V20, IP20 / UL open type, FSAB, B, 200-240 V 1 AC, 0,75 kW

Availability In Stock

£170.07
  • SINAMICS V20 Inverter
  • Input Voltage: 200-240V AC, 1 Phase
  • Frequency: 47-63Hz
  • Rated Power: 0.75 kW
  • Overload Capacity: 150% for 60 seconds
  • Integrated C1 filter
  • I/O: 4 DI, 2 DO, 2 AI, 1 AQ
  • Fieldbus Communication: USS/MODBUS RTU
  • Built-in Basic Operator Panel (BOP)
  • Protection Rating: IP20/UL open

Read more

  • Size: 68 x 142 x 128 mm (W x H x D)

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-5BB17-5BV1
Net Weight -
1.30kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital outputs -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in domestic- and commercial area permitted -
Application in industrial area permitted -
Depth -
127.8 Millimetre
Height -
142 Millimetre
Mains voltage -
200 Volt
Max. output at linear load at rated output voltage -
0.75 Kilowatt
Max. output at quadratic load at rated output voltage -
0.75 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
240 Volt
Nominal output current I2N -
4.2 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of phases input -
1
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-15 Percentage
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of converter -
U converter
Width -
68 Millimetre

Availability In Stock

£170.07
