6SL32101PE211UL0

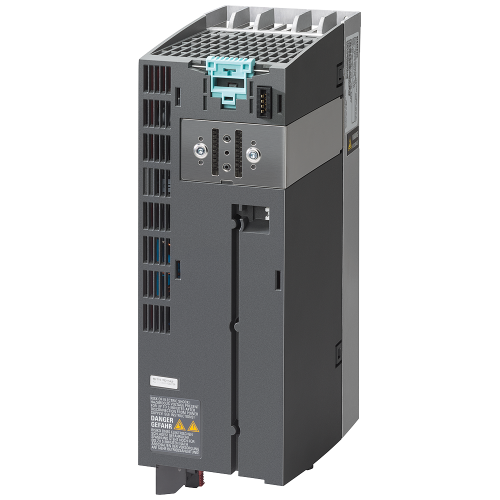

SINAMICS PM240-2, IP20 / UL open type, FSB, 380-480 V 3 AC, 4,00 kW

Manufacturer's No: 6SL3210-1PE21-1UL0     Manufacturer: Siemens
SINAMICS PM240-2, IP20 / UL open type, FSB, 380-480 V 3 AC, 4,00 kW

Availability Back Order

£651.19
  • Product: SINAMICS POWER MODULE PM240-2
  • Input Voltage: 3AC 380-480V +/-10%, 47-63Hz
  • Output High Overload: 3kW for 200% 3s, 150% 57s, 100% 240s
  • Output Low Overload: 4kW for 150% 3s, 110% 57s, 100% 240s
  • Ambient Temperature: -10 to +50°C
  • Dimensions: 291 x 100 x 165 mm (HxWxD)
  • Built-in Braking Chopper
  • FSB Protection IP20
  • Firmware Version: V4.6
  • Does not include filter, control unit, or panel

Read more

  • Approved for CU

Selectable mandatory product

Accessories

Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3210-1PE21-1UL0
Net Weight -
2.96kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Depth -
165 Millimetre
Height -
292 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
3 Kilowatt
Max. output at quadratic load at rated output voltage -
4 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
10.2 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
100 Millimetre

Availability Back Order

£651.19
