6SL32101PE330AL0

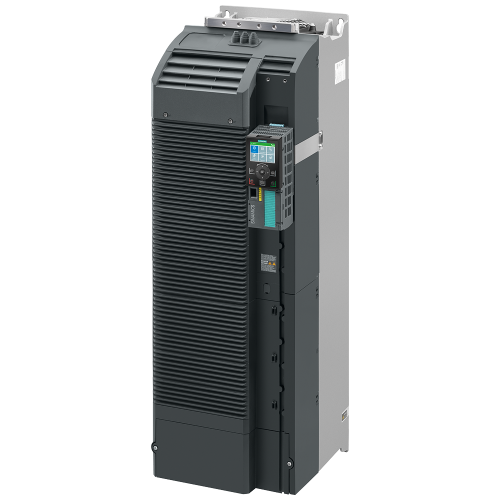

SINAMICS PM240-2, IP20 / UL open type, FSG, A, 380-480 V 3 AC, 160,00 kW

Manufacturer's No: 6SL3210-1PE33-0AL0     Manufacturer: Siemens
SINAMICS PM240-2, IP20 / UL open type, FSG, A, 380-480 V 3 AC, 160,00 kW

Availability Back Order

£13,397.92
  • Power Module: SINAMICS G120/S120 PM240-2 FSG
  • Integrated Filter EMC Class C2
  • Input: 3AC 380-480V +/-10%, 47-63Hz
  • Output High Overload: 132kW for 200% 3s, 150% 57s, 100% 240s
  • Output Low Overload: 160kW for 150% 3s, 110% 57s, 100% 240s
  • Ambient Temperature: -20°C to +50°C (HO), -20°C to +40°C (LO)
  • Built-in Braking Chopper
  • Dimensions: 1000 x 305 x 357 mm (HxWxD)
  • Protection: IP20
  • Firmware Versions: V4.7 SP9 and V5.1

Read more

  • Control Unit and Panel not included

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
6SL3210-1PE33-0AL0
Net Weight -
123.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704
