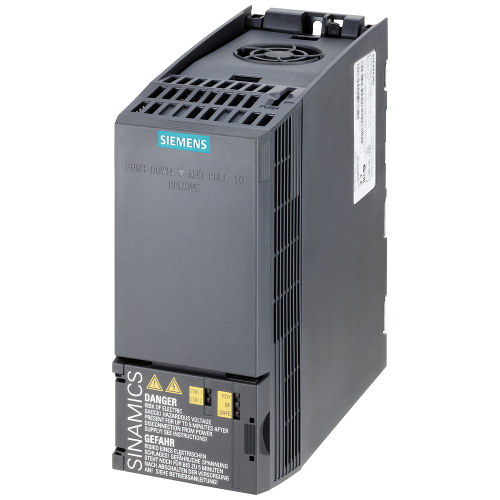

6SL32101KE123UB2

G120C - 0.55kW (1.7 A) (CT), 0.75kW (2.2 A) (VT), USS / Modbus, Unfiltered (FSAA)

Manufacturer's No: 6SL3210-1KE12-3UB2     Manufacturer: Siemens
G120C - 0.55kW (1.7 A) (CT), 0.75kW (2.2 A) (VT), USS / Modbus, Unfiltered (FSAA)

Availability Back Order

£455.15
  • Rated power: 0.75 kW with low overload capacity of 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds
  • High overload capacity: 0.55 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds
  • Input voltage: 3AC 380-480V +/- 10-20%, 47-63Hz
  • Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t Safe Torque Off integrated
  • Fieldbus options: USS/MODBUS RTU
  • Protection rating: IP20/UL OPEN TYPE
  • Compact size: FSAA 173 x 73 x 155 mm (H x W x D)

Accessories

Product video
Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3210-1KE12-3UB2
Net Weight -
1.12kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Depth -
155 Millimetre
Height -
173 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
0.55 Kilowatt
Max. output at quadratic load at rated output voltage -
0.75 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
480 Volt
Nominal output current I2N -
2.3 Ampere
Number of analogue inputs -
1
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
1
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of converter -
U converter
Width -
73 Millimetre
With PC connection -

Availability Back Order
