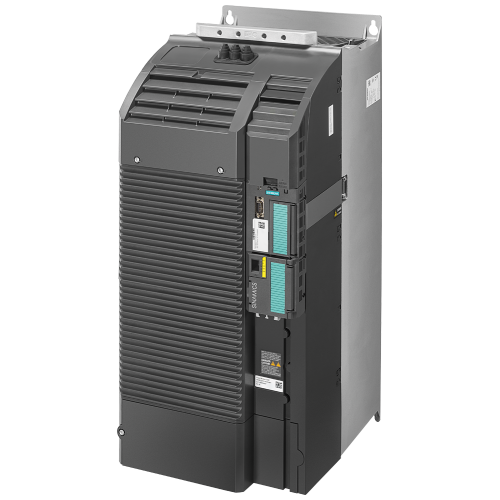

6SL32101KE317AF1

SINAMICS G120C, PROFINET, EtherNet/IP, IP20 / UL open type, FSF,A, 380-480 V, 3AC, 90,00 kW

Manufacturer's No: 6SL3210-1KE31-7AF1     Manufacturer: Siemens
SINAMICS G120C, PROFINET, EtherNet/IP, IP20 / UL open type, FSF,A, 380-480 V, 3AC, 90,00 kW

Availability In Stock

£8,422.94
  • Rated Power: 90.0 kW
  • Overload: 150% for 3 seconds
  • Input Voltage: 380-480 V, 3-phase AC, ±10/-20%, 47-63 Hz
  • Integrated Filter: Class A
  • I/O Interface: 6 DI, 2 DO, 1 AI, 1 AO
  • Safe Torque Off feature
  • Integrated Fieldbus: PROFINET-PN
  • Degree of Protection: IP20/UL open type
  • Size: 708 x 305 x 357 mm (H x W x D)
  • External 24 V power supply

Accessories

Product video
Product video
Instructional video
Instructional video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video


Product

Manufacturer Material ID -
6SL3210-1KE31-7AF1
Net Weight -
76.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
GB
Export Control Regulations -
AL: 9I999KP / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in domestic- and commercial area permitted -
Application in industrial area permitted -
Depth -
357 Millimetre
Height -
708 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
75 Kilowatt
Max. output at quadratic load at rated output voltage -
90 Kilowatt
Max. output frequency -
550 Hertz
Max. output voltage -
480 Volt
Nominal output current I2N -
164 Ampere
Number of analogue inputs -
1
Number of analogue outputs -
1
Number of digital inputs -
6
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
1
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-20 Percentage
Supporting protocol for EtherNet/IP -
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of converter -
U converter
Width -
305 Millimetre
With PC connection -

Availability In Stock

£8,422.94
