6SL32101RE288AL0

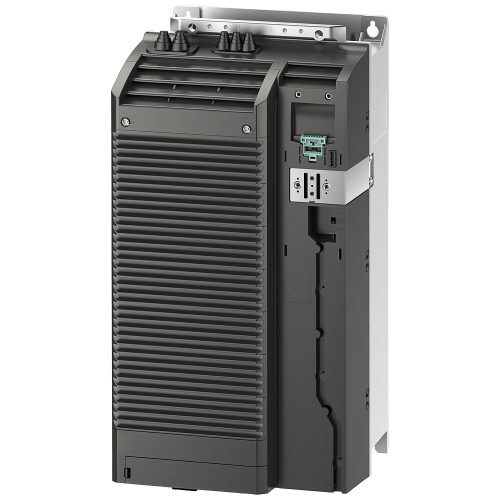

SINAMICS PM240P-2, IP20 / UL open type, FSE, A, 380-480 V 3 AC, 45,00 kW

Manufacturer's No: 6SL3210-1RE28-8AL0     Manufacturer: Siemens
SINAMICS PM240P-2, IP20 / UL open type, FSE, A, 380-480 V 3 AC, 45,00 kW

Availability Back Order

£5,926.24
  • SINAMICS G120 Power Module PM240P-2
  • Integrated Class A filter
  • Input: 380-480V 3AC +/-10/-20% 47-63Hz
  • High overload: 37 kW at 150% for 60s, 100% for 240s
  • Ambient temperature: -20 to +50°C (HO)
  • Low overload: 45 kW at 135% for 3s, 110% for 57s, 100% for 240s
  • Ambient temperature: -20 to +40°C (LO)
  • Dimensions: 551 x 275 x 237 mm (H x W x D)
  • Degree of protection: IP20
  • Does not include Control Unit and operating unit

Read more

  • Released with CU firmware Version V4.7 SP6 HF1

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-1RE28-8AL0
Net Weight -
32.88kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: 9I999KP / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Depth -
237 Millimetre
Height -
551 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
37 Kilowatt
Max. output at quadratic load at rated output voltage -
45 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
90 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
275 Millimetre

Availability Back Order
